High Reliability IP66 all weather P-1 Mark II can function well under all weather conditions at ease, including the icy, frosty, rainy and snowy days as well as deserts, Gobi, and the high-humidity environment! P-1 Mark II boasts an IP66 protection rating, and can be used in all weather conditions. All connections between the buttons and the case, as well as the rubber cover at the bottom, are sealed to shield P-1 Mark II from water and dust in any extreme weather.
P-1 Mark II also works in an extended
range of temperature from -10°C to 50°C, to ensure normal
use at high latitudes and in tropical areas. List of enterprises and Institutions using Columbus products (partial) Beijing Jiaotong University（School
of Traffic and Transportation） |
|
 Reliable and stable data storage Data storage stability is critical, and we have improved the reliability of P-1 Mark II. We have optimized the hardware design to ensure that it faithfully records every track point during work. The reliability of data is better than 99.998%* under long-term and large-scale recording. The Columbus data logger series has provided stable and efficient logging at a very low failure rate since its launch in 2009. So far, Columbus has supplied high-quality products to hundreds of enterprises and institutions around the world. Click to learn about the good practices and partners of Columbus products> * Based on our test results. Track points are lost at a probability of less than 0.002%, or no more than one track point is lost in every 50,000 records. |
List of enterprises and Institutions using Columbus products (partial)
Beijing Jiaotong University（School
of Traffic and Transportation）
East China Normal University
Tsinghua University
Dongfeng Nissan Passenger Vehicle Company
Track4Services Ltd. London
BMW Group
C-Dax Ltd. New Zealand
Columbia University
University of San Diego
University of Tennessee
Marine Mammal Research.com (MMR)
De La Salle University
The University of Western Ontario (Human Environments Analysis Laboratory)
Cornell University (Department of Animal Science)
Emory University (Department of Anthropology)
Michigan State University
University of Wisconsin-Madison
University of Ghana (Institute of Statistical)
U.S. Department of Agriculture (Range Resources and Systems Research)
University
of Western Ontario, Canada (Department of Geography)
Oregon State University (Department of Animal and Ranch Science)
University of Maine
Lincoln University of Nebraska
University of South Florida
Archibald-University of Florida LTAR (Livestock Research and Education Center)
University of Florida-IFAS
University of Zagreb, Croatia
|
|
|

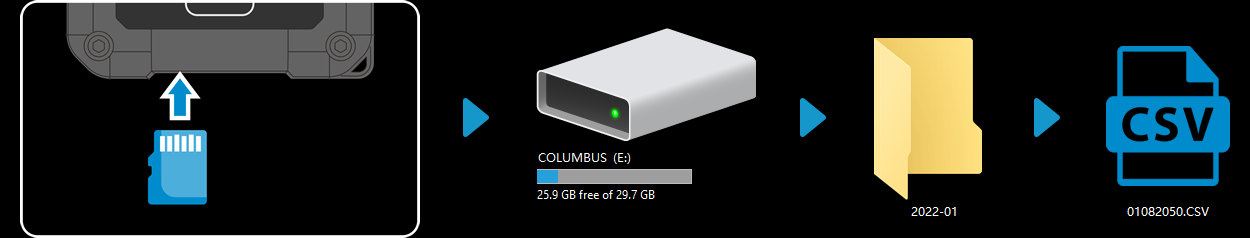

Easy to read and process Storage performance is vital to ensuring its stable logging and dependable storage over a long term. P-1 Mark II uses the MicroSD card storage and supports massive-capacity SDXC cards. The storage is readily accessible through any plug-and-play USB port, providing seamless compatibility with Windows, Mac OS, Linux and Android, that enables you to quickly read tracks across these platforms. To facilitate statistics and management of massive volume of data collected in a long time period, P-1 Mark II Pro neatly arranges its logs by automatically naming track files after date and time, and folders by year and month.
|
 |
|
|
|
CSV, GPX and NMEA P-1 Mark II offers three original track formats for selection: CSV, GPX and NMEA, which is convenient for secondary development and application. You can also use the desktop software "Time Album Pro" to view the tracks and conversion. Download the quick start to know the format details of P-1 Mark II> |
|
|
TimeAlbum™ Pro "TimeAlbum™ Pro" is equipped with the most advanced track editing function and personalized settings with the ability to provide the latest and multiple maps, such as Google and Openstreetmap.
"TimeAlbum™ Pro" can assist in your background work, and can
efficiently convert, manage and plan the tracks. |
|
|
|
|
More intelligent |
|
Long battery life The battery life of P-1 Mark II is more than 48 hours*, enough for a whole week's work (8 hours a day, 5 days a week) . * Continuous recording at 1Hz, with the ambient temperature at 20°C.
|
 |
|
|
Motion Detection Mode Columbus invented the Motion Detection Mode on the V-990 in 2011 and is widely welcomed by users. The ordinary data logger still works after suspended movement or positioning failure, which consumes power and generates redundant track points. When P-1 Mark II is in a static status or has lost the satellite signal for over 5 minutes, it is automatically on standby to save energy. The Motion Detection Mode extends battery life and optimizes data. Short press the power button to turn on or off the mode.
|
|
|
|
|
On-board Auto on/off P-1 Mark II Pro is automatically powered on/off with the vehicle, no need for manual operation. *This function needs to be turned on in the configuration file.
|
|
|
|
|
Spy Tracking Mode Columbus invented the Spy Tracking Mode for ultra-long battery life. This mode achieves ultra-long battery life (up to 24 days) by interval work, and is suitable for tracking vehicles or people when charging is not convenient.In this mode, P-1 Mark II gets positioned and logs 8 track points at a certain time interval. In actual use, the spy tracking mode can not only extend the battery life but also optimize the track data. Click to view the interval time / battery life table> Click to learn the application case for livestock>
The corresponding battery life for different intervals is as follows:
For example, researchers intend to monitor the activities of cattle in livestock research projects, which needs to extend the battery life of the device as much as possible. P-1 Mark II can be configured as follows: Step 1: The interval time is set to 10 minutes in configuration file (SpyModeTimer=10). Complete the configuration of P-1 Mark II. Step 2: Enter the spy tracking mode. P-1 Mark II records the track points of livestock every 10 minutes. The battery life in this configuration lasts for about 20 days.
|
|
Customizable |
|
Personalized configuration P-1 Mark II is a professional data logger that can be customized. You can configure the following parameters at any time according to the needs of the project. Details about configuration of P-1 Mark II ● Time zone. UTC -12:00 to UTC
+14:00.
|
|
|
|
|
|
Firmware customizable and self-updated
We are constantly improving P-1 Mark
II.
You can download the latest version of the firmware on the
official website and update it by yourself to ensure that
the device is in the best condition. The update is
user-friendly.
|
