How to Set Up a Base Station

>How to Set Up a Base Station<

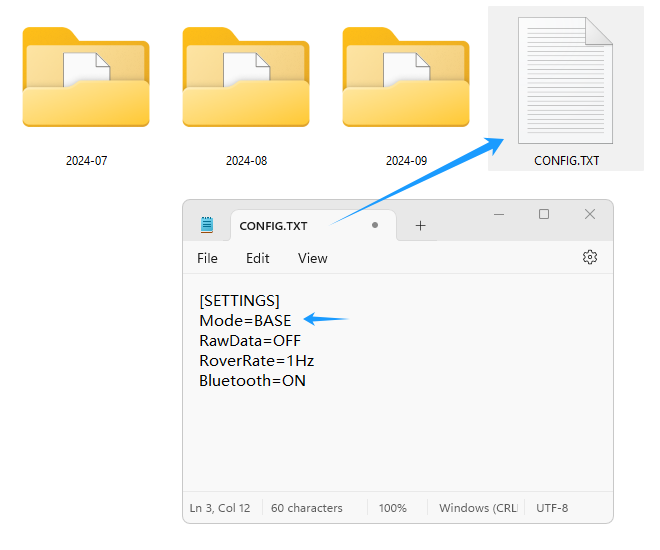

Modify the configuration file: Mode=BASE

Copy the configuration file to the root directory of the EX-1's memory card and perform the configuration operation.

Click here to review "How to Configure EX-1".

Apply for an NTRIP account, with GeoAstra recommended.

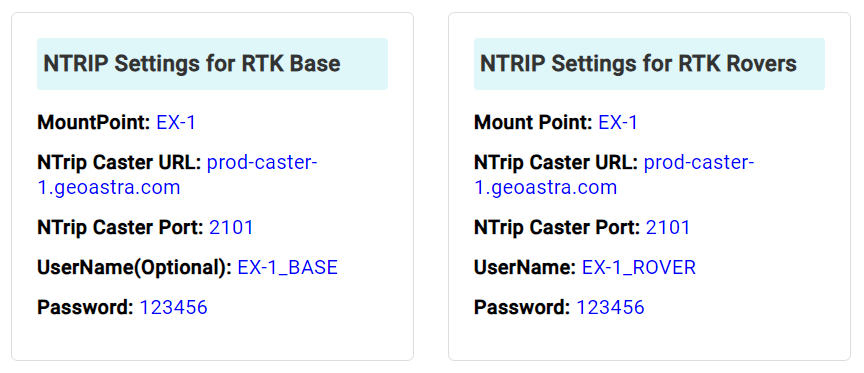

After successful application, click "Dashboard" to view the mount point information*.

* This is just an example, the parameters may vary for different accounts.

Download and run "STRSVR."

Place the EX-1's receiving antenna in a fixed position with no obstructions around it. Connect the EX-1 to your PC using a USB cable, then power it on.

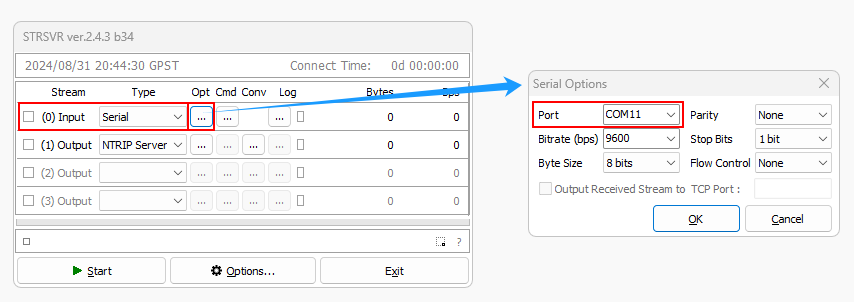

In the "Input" section, select "Serial" as the type, and click "Opt" to choose the port where the EX-1 is connected.

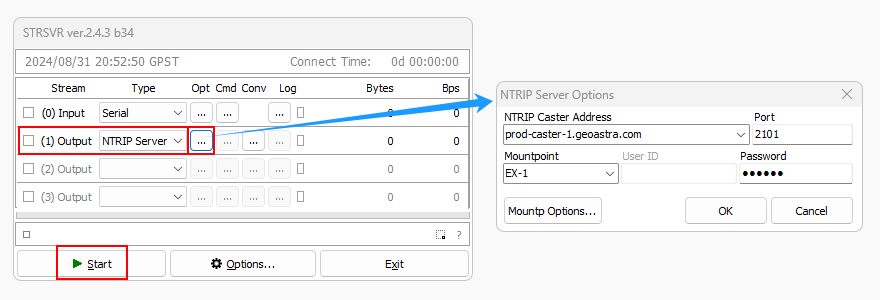

In the "Output" section, select "NTRIP Server" as the type, and click "Opt" to enter the mount point account information mentioned above. Click "Start" to begin the operation.

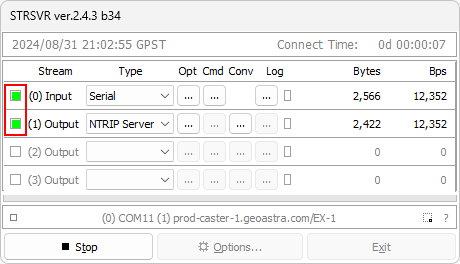

If you see a green square, it indicates that the configuration was successful.

If you need to connect the EX-1 set to rover mode with this base station, please refer to “How to Obtain RTK Positioning”.
