>How to Configure the EX-1<

The EX-1 comes with default settings from the factory.
You can configure the EX-1's operating parameters by importing a configuration file.

Download the default configuration file.
Right-click on the icon below and select "Save As" to save the file as: CONFIG.TXT

The default configuration of EX-1 is as follows:

[SETTINGS]
Mode=ROVER
RawData=OFF
RoverRate=1Hz
Bluetooth=ON


Rover Mode
GNSS raw observation data: OFF
1Hz update rate
Bluetooth: ON

The EX-1 configuration options are as follows:
Configuration Item Configurable Values
Mode ROVER (default), BASE
Operating Mode: ROVER (Rover), BASE (Base Station)
RawData OFF (default), ON
GNSS raw observation data (Rover mode only): OFF (Do not record), ON (Record)
RoverRate 1Hz (default), 5Hz£¬10Hz
Rover position update rate: 1Hz (1 track point per second), 5Hz (5 track points per second), 10Hz (10 track points per second)
Bluetooth ON (default), OFF
Bluetooth: ON (Enable), OFF (Disable). If the Bluetooth function is not in use, it can be turned off to save power.
The configurable values are listed above. Please note that values are case-sensitive.

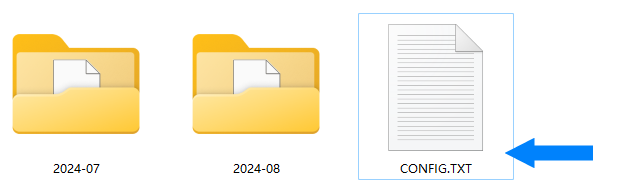

While powered off, connect the EX-1 to the computer. Copy the configuration file to the root directory of the microSD card, then safely eject the device.

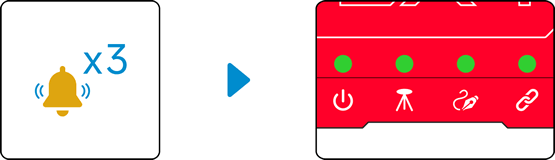

Press and hold the "power button" to turn on the EX-1. You will hear three "beeps", and all lamps will flash green simultaneously. Once the configuration is complete, the device will automatically enter normal operation, indicating that the configuration is successful.

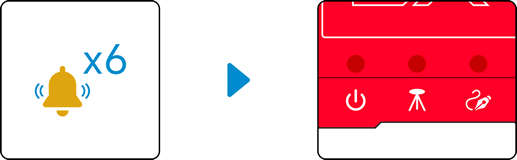

If there is an error in the configuration file, the EX-1 will continuously beep and the indicator lamps will flash red. Please check the configuration file on the card for any errors.

¡¡

Tip: Ensure that there is a newline character at the end of the configuration file. Do not delete this newline.

¡¡

The data saved to the memory card is as follows:

Mode=ROVER
RawData=OFF

 NMEA
$GNRMC
$GNRGA
$GNGSA
$GNGSV		 ¡¡
Mode=ROVER
RawData=ON		 NMEA
$GNRMC
$GNRGA
$GNGSA
$GNGSV		 UBX
UBX-RXM-SFRBX
(Code Phase [ms])
UBX-RXM-MEASX
(Doppler [m/s, Hz])
UBX-RXM-RAWX
(Pseudoranges [m], Carrier phase [cycles])
Mode=BASE NMEA
$GNRMC
$GNRGA
$GNGSA
$GNGSV		 RTCM
TYPE1005
TYPE1074
TYPE1084
TYPE1094
TYPE1124
TYPE1230
¡¡
