Ingress Protection*

External Active GNSS Antenna: IP67

* The external GNSS antenna can be used in all-weather environments. The EX-1 body is not waterproof.

Operating Temperature

-20 ° to 50 °C / -4 ° to 122 °F

GNSS Engine

u-blox ZED-F9P

184 Channels

GNSS Performance

Upper L-Band (L1): GPS (L1C/A, 1575.42MHz), Galileo (E1B/C, 1575.42MHz), BeiDou (B1I, 1561.098MHz), GLONASS (L1OF，1602MHz), QZSS (L1C/A，L1S, 1575.42MHz), SBAS (L1C/A)

Lower L-Band (L2): GPS (L2C/A, 1227.6MHz), Galileo (E5b, 1207.14MHz), BeiDou (B2I, 1207.14MHz), GLONASS (L2OF, 1247MHz), QZSS (L2C, 1227.6MHz)

Positioning Accuracy

RTK Mode:
Horizontal Accuracy: 0.01 m + 1 ppm* (Circular Error Probability / CEP 50%)
Vertical Accuracy: 0.01 m + 1 ppm* (Median)
Velocity Accuracy: 0.05m/s
Dynamic heading accuracy: 0.3 deg

SBAS Mode:
Horizontal Accuracy: 0.3 m (Circular Error Probability / CEP 50%)

* Measurements are taken using a 1 km baseline. ppm is limited to a maximum baseline range of 20 kilometers. For every additional kilometer between the rover and the fixed station, the error increases by 1 mm. Testing is conducted in areas with a clear sky view.

* Based on a 1-hour static test.

Measurable Range

Maximum altitude: 80,000 m
Maximum horizontal Speed: 1,800 km/h
Maximum vertical speed: 72,000 km/h

Positioning Ability*


Acquisition
Reacquisition: <2s
Hot start: <2s
Cold start: <29s
RTK convergence time: <5s

* Testing in ideal open environments.

Sensitivity
Tracking & Nav.: -167 dBm
Reacquisition: -160 dBm
Hot Starts: -157 dBm
Cold Starts: -148 dBm

Update Rate

1, 5, 10 Hz

Recordable Data

Protocol: NMEA 0183
Messages (Default):
GNRMC
GNGGA
GNGSA
GNGSV
Geodesics: WGS84
* 4.11 version

Protocol: UBX
Messages (Default):
UBX-RXM-SFRBX
(Code Phase [ms])
UBX-RXM-MEASX
(Doppler [m/s, Hz])
UBX-RXM-RAWX
(Pseudoranges [m], Carrier phase [cycles])

Protocol: RTCM
Messages (Default):
TYPE1005
TYPE1074
TYPE1084
TYPE1094
TYPE1124
TYPE1230
* RTCM 10403.3 version

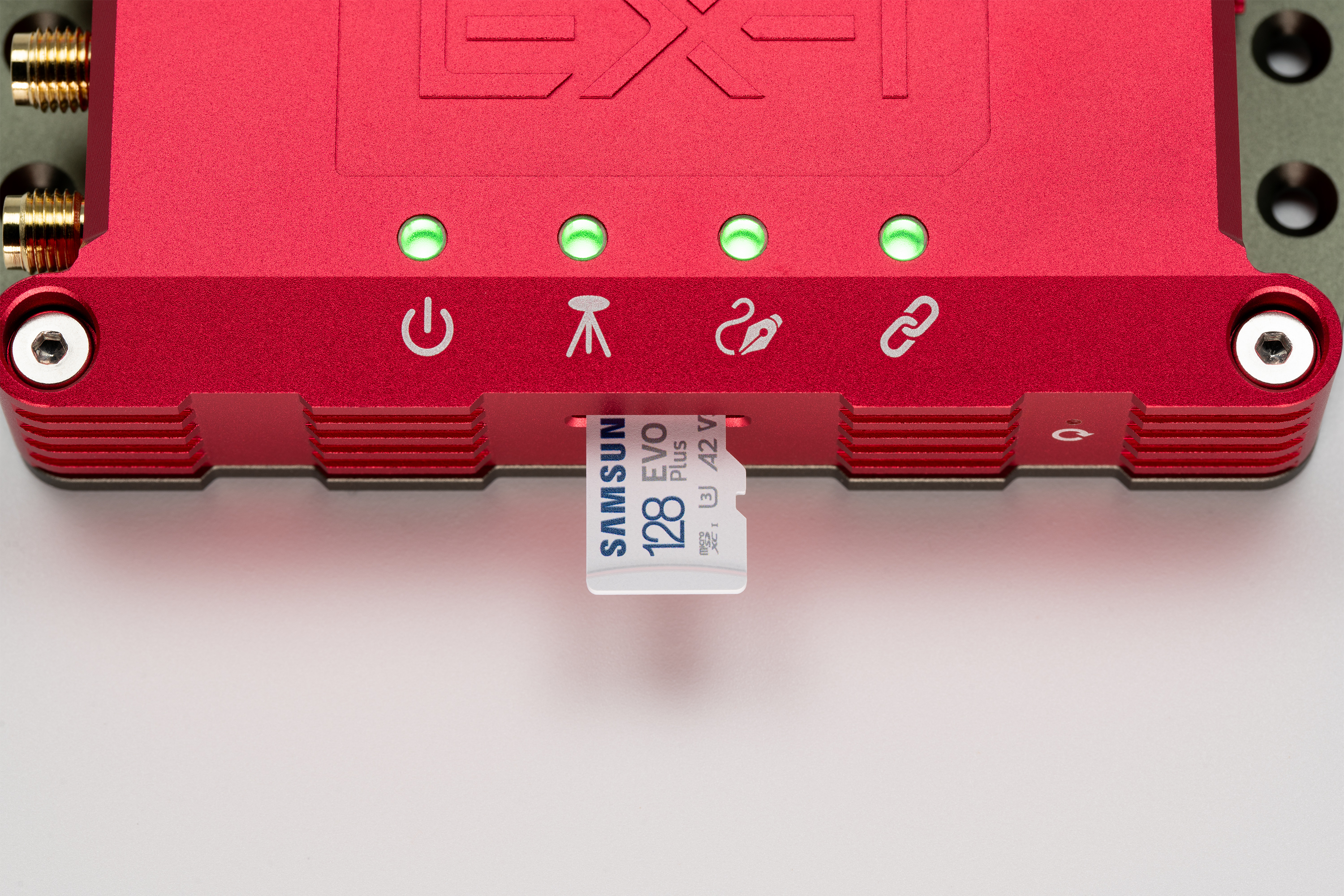

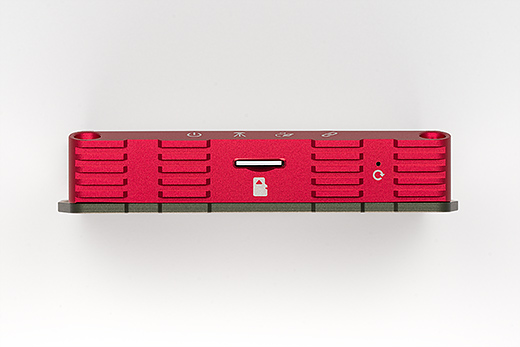

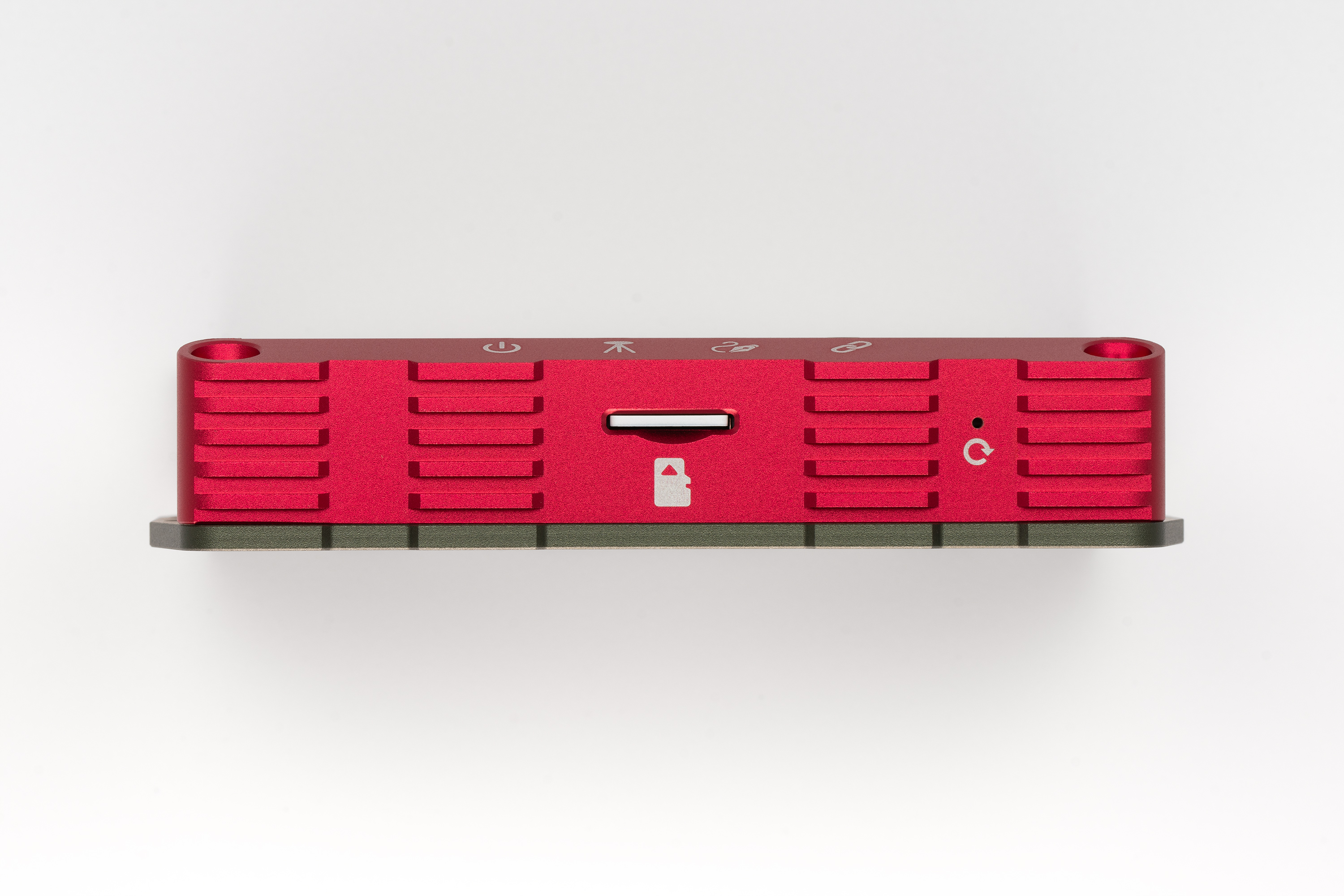

Storage Card

MicroSD, MicroSDHC, MicroSDXC
FAT16, FAT32, exFAT File System
Capacity Supported: >2TB

Bluetooth

Channel 1: EX-1 NTRIP
Mode: SPP 2.1，BLE 5.1
Range: >10 m (33 feet)

Channel 1: EX-1
Mode: SPP 2.1，BLE 5.1
Range: >10 m (33 feet)

Connectors

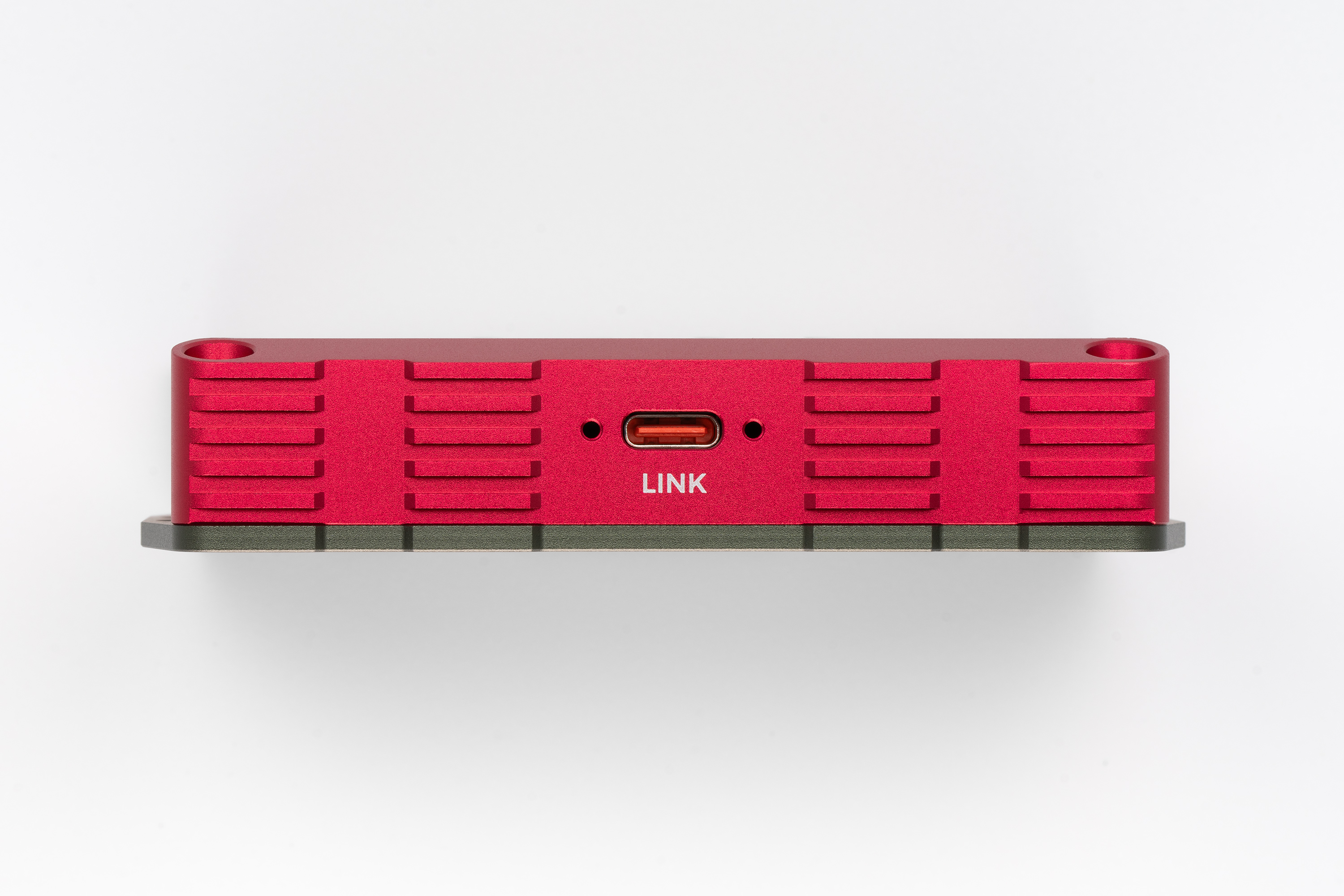

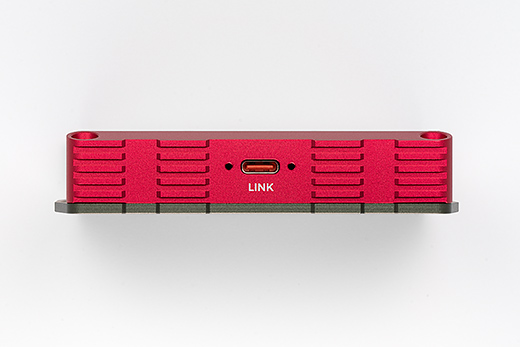

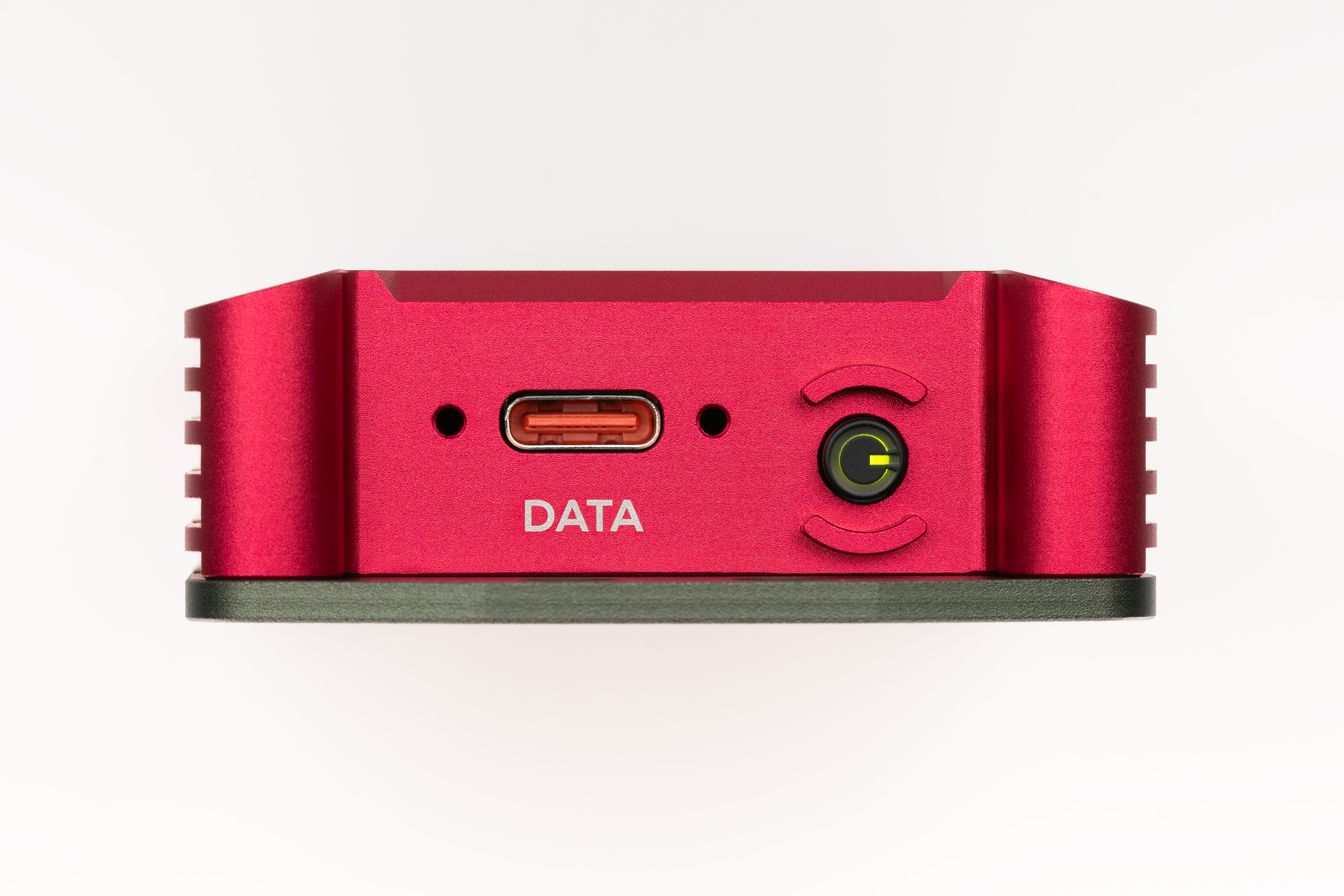

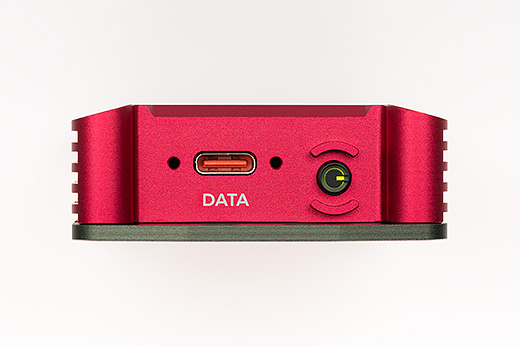

Data port: USB Type-C
Expansion port: USB Type-C

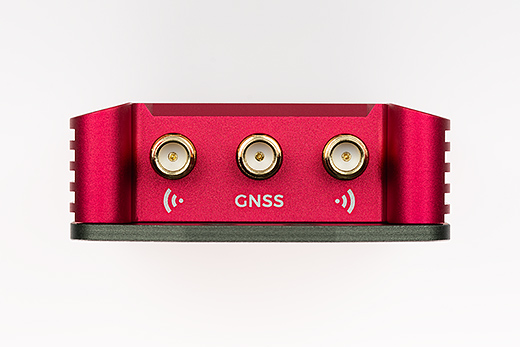

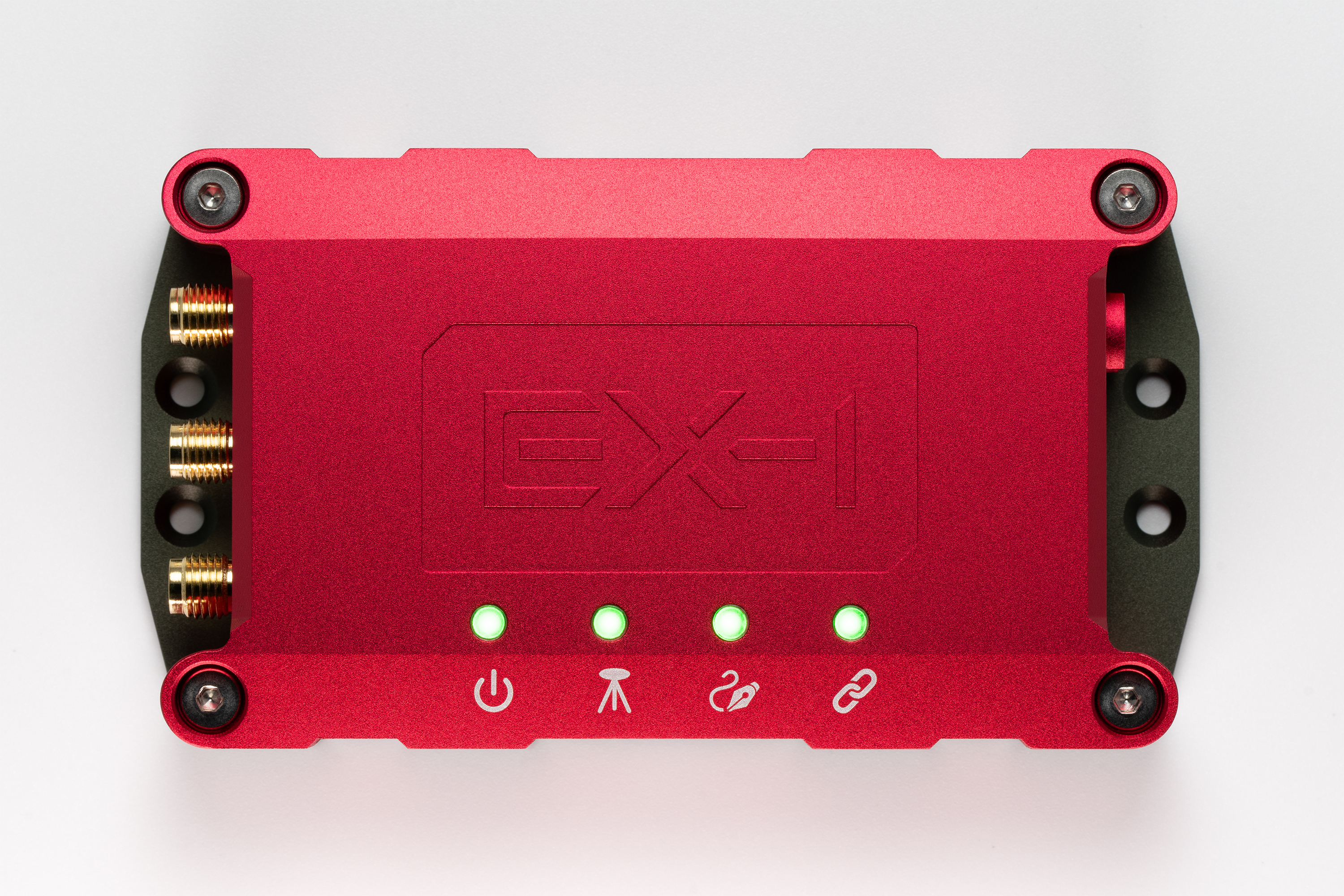

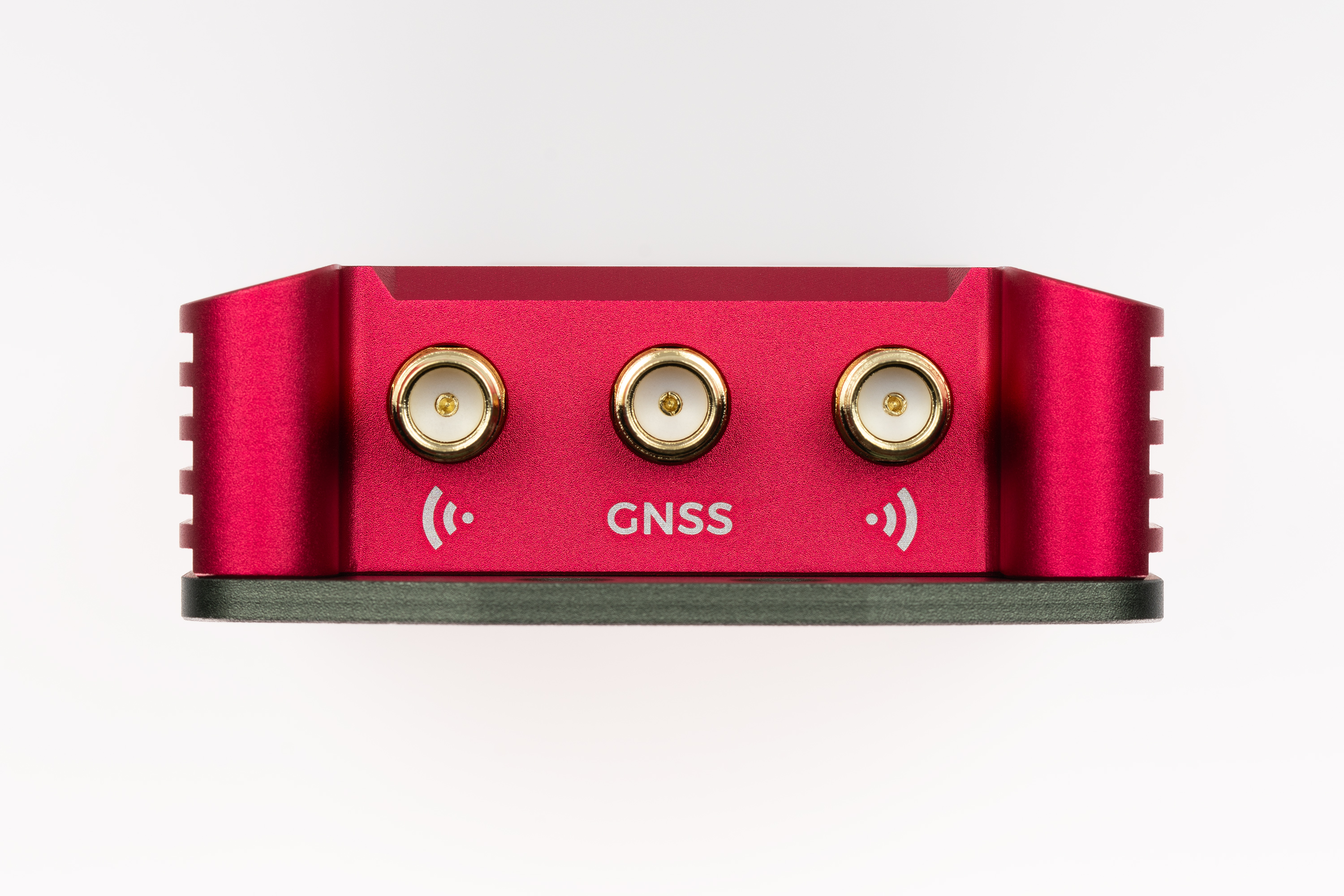

GNSS antenna connector: SMA (Female)
Bluetooth connectors: SMA (Female)

Power and Battery

Built-in 2100mAh rechargeable lithium-polymer battery
Continuous recording (RTK mode): 10 hours*
Charging time: Approx 4.0 hours
Power supplies: DC 5V 800mA

* Continuous logging at 1Hz and 20°C environmental temperature.

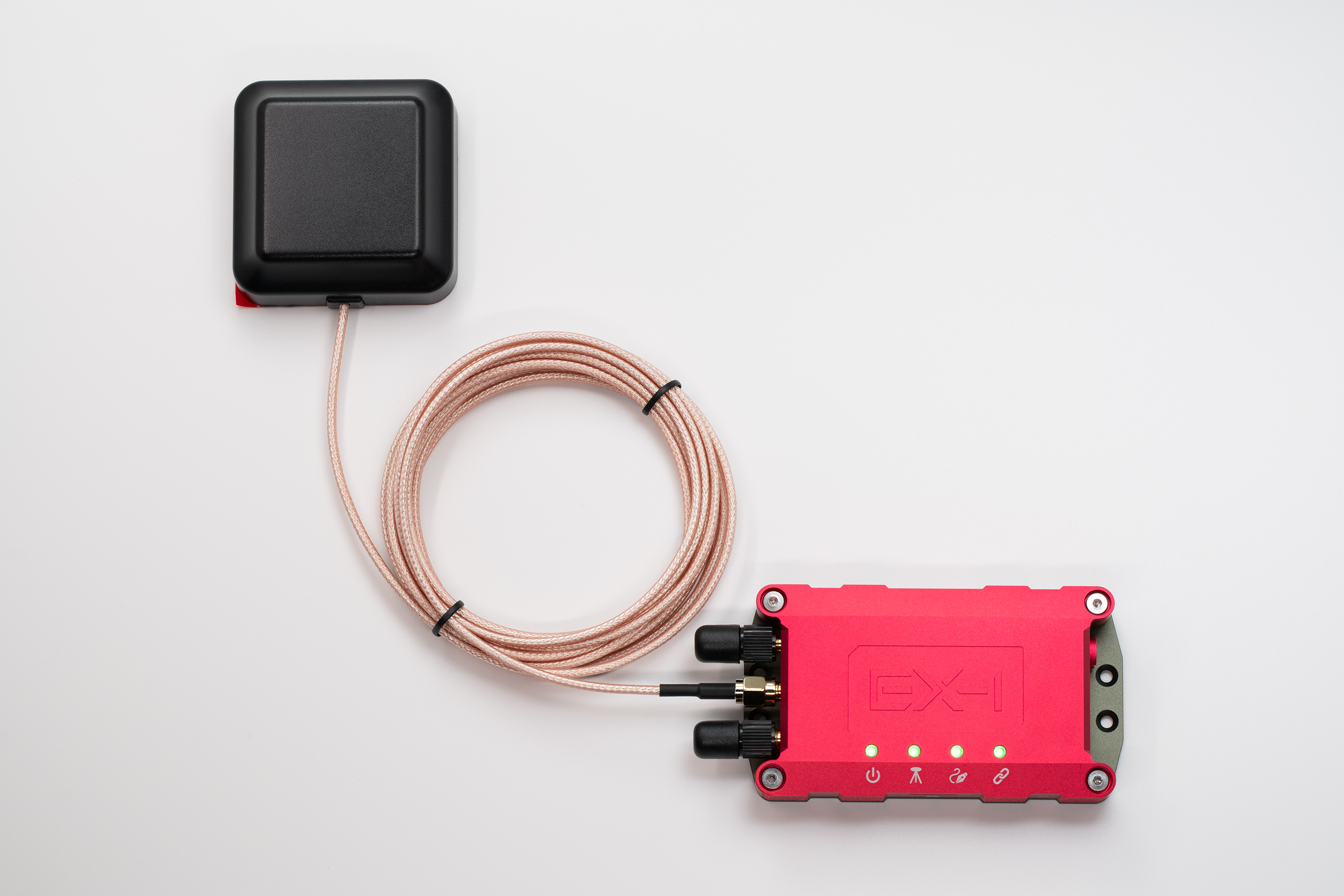

Antenna

GNSS antenna:
Type: Active antenna
Polarization: RHCP
Impedance: 50 Ω
VSWR: ≤2.0
Patch Gain: ≥2 dBi
LNA Gain: 28±2 dB
Noise figure: ≤1.5 dB
Connectors: SMA (male)
Cable: RG316，300 cm
Operating voltage: 3.3 V
Current: 40 mA
Mounting method: Magnetic with adhesive

Bluetooth antenna:
Type: Passive antenna
Frequency range: 2.4~2.5 GHz
Polarization: Vertical
Impedance: 50 Ω
VSWR: ≤1.5
Connectors: SMA (male)

System Requirements

Windows 7 or greater
Mac OS X v10.10 or greater
Linux 2.6.12 or greater
iOS 15 or greater
Android 10 or greater
iPad OS 15 or greater

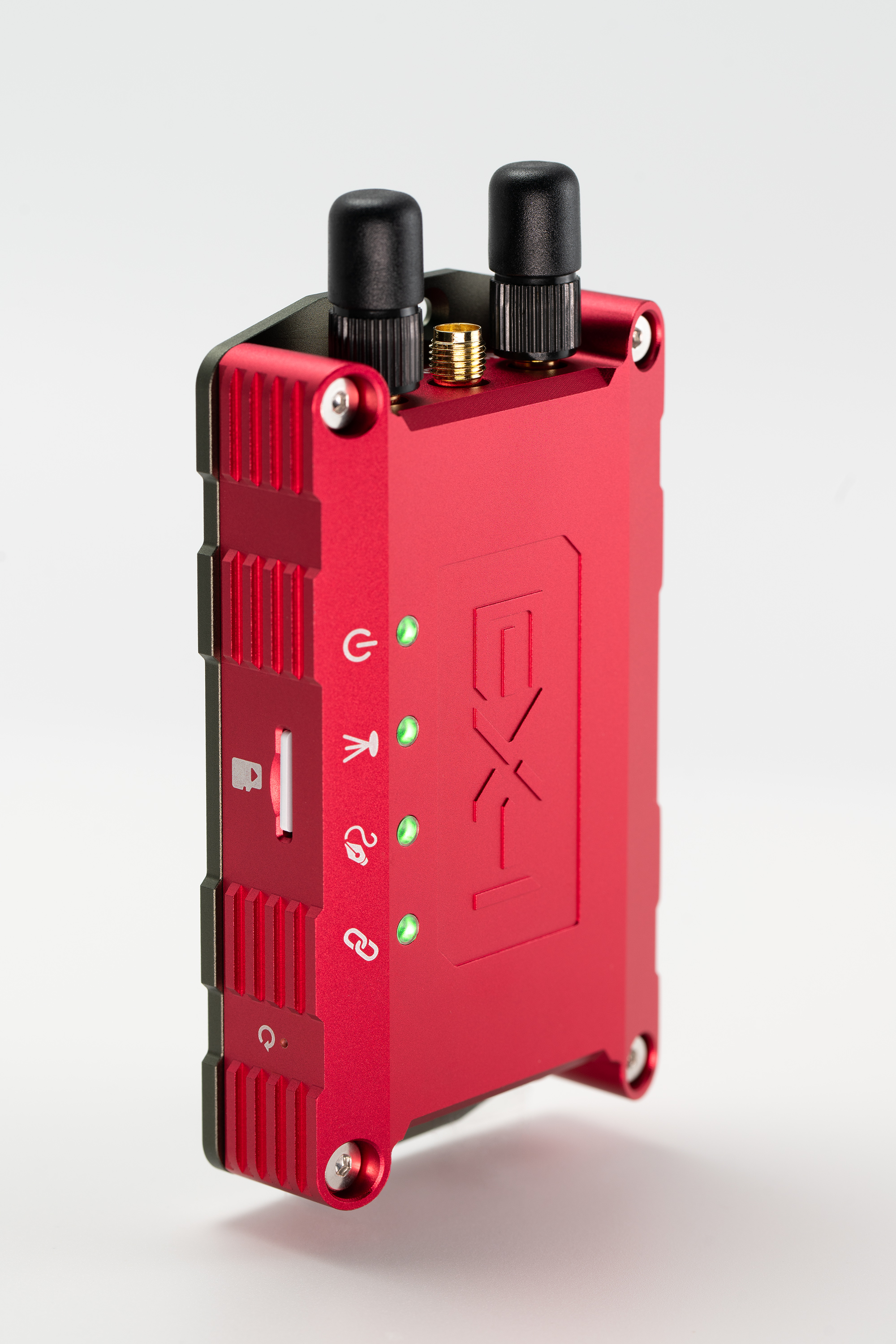

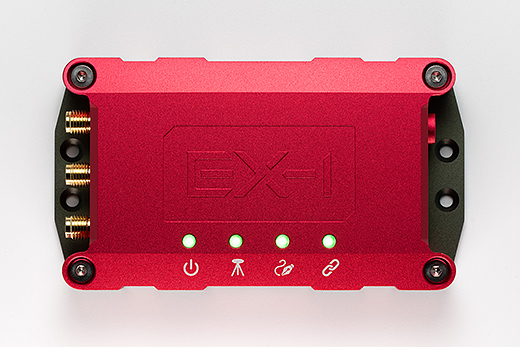

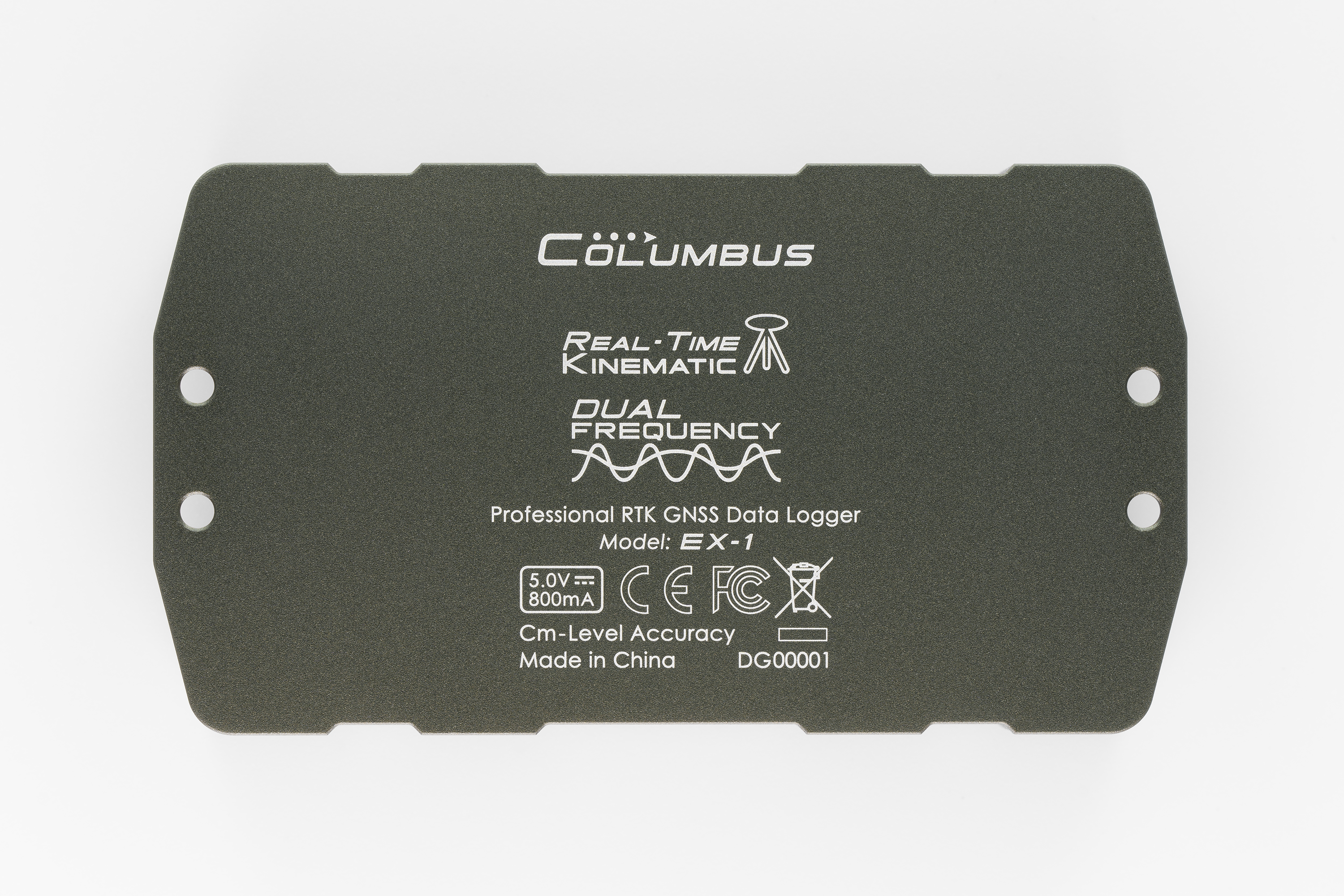

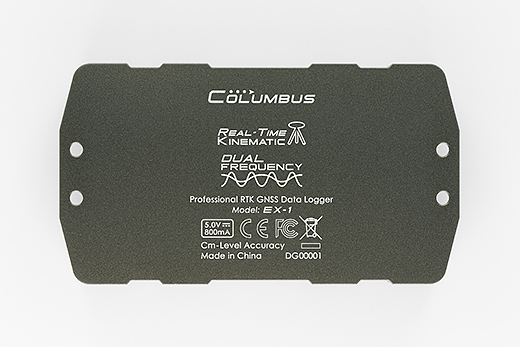

Parts Description
