Professional Racing GNSS Receiver

Features

Support

Tech Specs

Buy





Extreme performance by the brand-new chip.
Blazing Fast
25Hz Update Rate.


Professional Racing GNSS Receiver








Blazing Fast 25Hz Update Rate
Industry-Leading High Accuracy

Designed for High-Speed Sports

*Kart tracks shown in the video were recorded by the P-9 Race



Brand New Features

Industry-leading 25Hz update rate, it is suitable for high-speed sports such as motorcycles, racing cars and aviation.

High horizontal position accuracy: 0.7m CEP 50%, 2.0m CEP 95%.

Ultra-low latency. The update interval is as low as 0.04s, providing real-time position information without delay.

Supports all constellations: GPS, Galileo, GLONASS, BeiDou.

Equipped with a large external high-gain active antenna, ensures high accuracy.

The antenna adopts industrial grade IP67 protection, rugged and durable, can be used in all weather conditions.

Supports wired and wireless connections. Compatible with all common operating systems.

The standard NMEA0183 data format supports most applications.



Blazing Fast 25Hz Update Rate

The latest generation of chip brings significant improvements in performance, that allows the P-9 Race to achieve a truly ultra-high update rate of 25Hz.

It also achieves excellent horizontal accuracy*: 0.7m/CEP 50%, 2.0m/CEP 95%.

Whether it is a wired or wireless connection, it provides real-time location information without lag.

* The P-9 Race can provide: better than horizontal direction 0.7m/CEP(50%); 2.0m/CEP(95%). Data from testing in ideal open environments.
CEP refers to Circular Error Probable. 0.7m/CEP(50%)* means that the probability of the track points falling within a 0.7m radius is greater than 50%; 2.0m/CEP(95%) means that the probability of the track points falling within a 2.0m radius is greater than 95%.

  • 1Hz
  • 5Hz
  • 25Hz

What? Almost indistinguishable track at 1Hz? Try 5Hz!





Industrial Mech

5Hz is much better, but not good enough! The location refresh interval is only 0.2 seconds, which is obviously not accurate enough for timing!



Industrial Mech

After increasing to 25Hz, a very smooth track is recorded, and the position refresh interval is only 0.04 seconds, which has exceeded the accuracy of most track timers. This is the meaning of 25Hz! This will help you analyze your performance on the track to improve your score.

Industrial Mech


Split Design

All Constellations

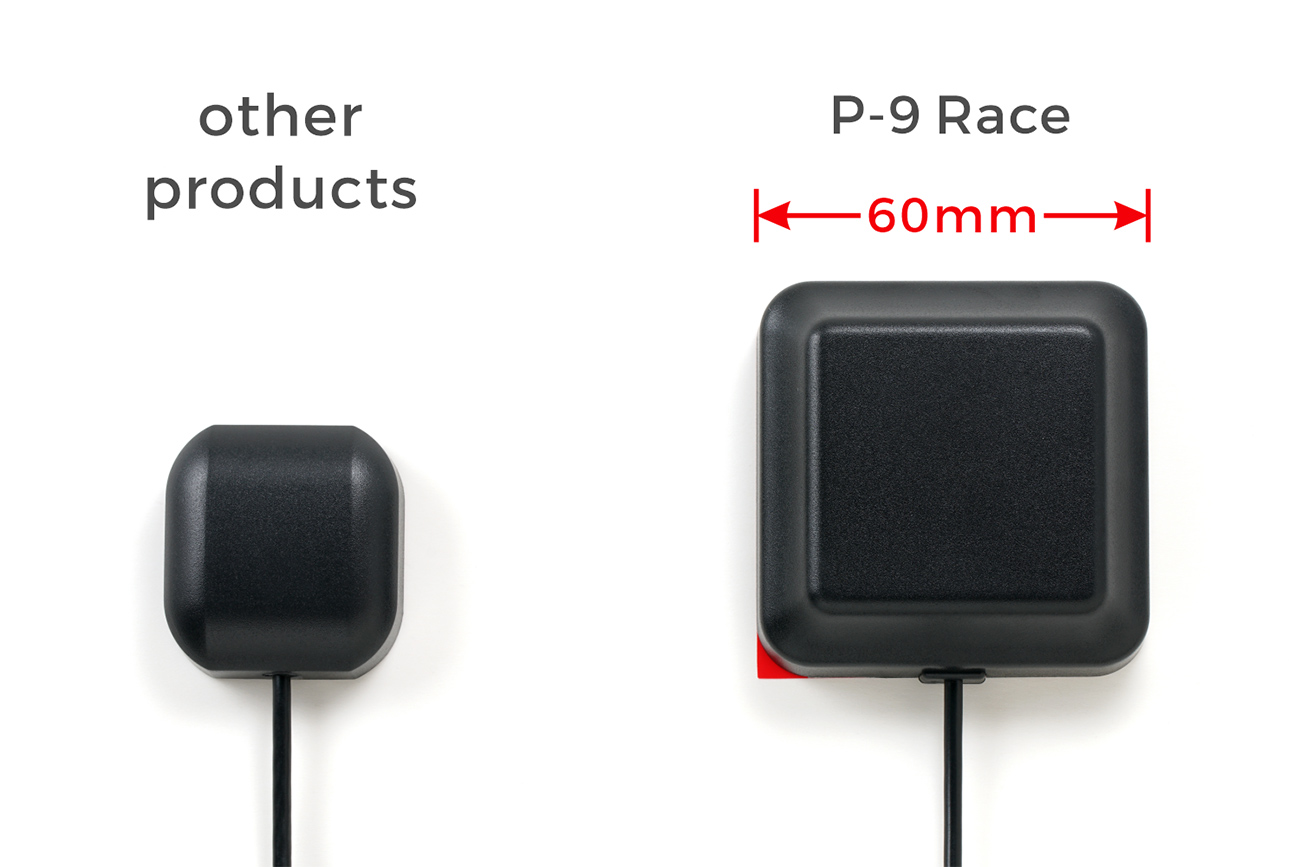

Equipped with an external large 4-feed point antenna, the effective receiving area is 3.5 times that of the general antenna, and the higher and more stable signal ensures the accuracy. With industrial grade IP67 protection, rugged and durable, can be used in all weather conditions.

Supports all constellations: GPS (L1C/A), Galileo (E1-B/C), GLONASS (L1OF), BeiDou(B1l), QZSS (L1C/A), SBAS (EGNOS, GAGAN, MSAS, WAAS, QZSS L1S).



Significant Improvement! Accurate Tracks with no Latency!

Let's See the Performance!

About the test site

Go-Kart Track*
Width: 60 m
Length: 100 m
Overall length: 430 m
Maximum acceleration: >1.5G
Straight road speed: >50km/h


* Kart track measurements are more challenging for receiver performance than typical tracks.
When the kart is running at high speed on a narrow lane, the speed and direction of motion are random and unpredictable.
It was difficult for previous products to accurately measure the track.

Single-lap test

Number of laps: 1 lap    |    Elapsed time: 43"    |    Mileage: 437 meters
Average speed: 36.6km/h    |    Max. speed: 46km/h    |    Max. acceleration: 1.3G
Test content: consistency with the actual track
Test time: UTC 2023-02-01 07:14:10 ~ 07:14:53
Download the track (KMZ)>

other products

P-9 Race



Multiple laps test

Number of laps: 11 laps    |    Elapsed time: 7'52"    |    Mileage: 4702m
Average speed: 35.9km/h    |    Max. speed: 46km/h    |    Max. acceleration: 1.4G
Test content: multi-laps consistency
Test time: UTC 2023-02-01 07:14:10 ~ 07:22:02
Download the track (KMZ)>

other products

P-9 Race







Innovative Connections

The P-9 Race supports wired and Bluetooth connection, and can be connected to terminal devices at the same time. You can use different apps for data collection and analysis simultaneously.

Dual-mode Bluetooth Connection

The P-9 Race has built-in dual-mode Bluetooth, BLE 5.1 and SPP 2.1. The reliable range is more than 10 meters.

Excellent Multi-Platform Compatibility

The P-9 Race has excellent multi-platform compatibility and is compatible with all most common operating systems.



Get the most out of the P-9 Pro with powerful Apps!

We will continue to update the integrated Apps.

FL FASTLAP

Harry's LapTimer

RaceChrono















Click to view the most popular apps for the P-9 Race>
