Ingress Protection*

External active GNSS antenna with magnetic mount: IP67

* The external GNSS antenna can be used in all-weather environments. The P-70 Ultra main unit is not waterproof.

Operating Temperature

-40 °C to 85 °C / -40 °F to 185 °F

GNSS Engine

High precision RTK GNSS chipset with EPS Ultra technology*
120 Channels

* "EPS Ultra" is Columbus' proprietary technology.

GNSS Performance

Upper L-Band (L1): GPS (L1C/A, 1575.42 MHz), Galileo (E1B/C, 1575.42 MHz), BeiDou (B1I, B1C, B1Q, 1561.098 MHz), GLONASS (L1OF, 1602 MHz), QZSS (L1C/A, L1S, 1575.42 MHz), SBAS (L1C/A)

Lower L-Band (L5): GPS (L5, 1176.45 MHz), Galileo (E5a, 1176.45 MHz; E5b, 1207MHz), BeiDou (B2a, 1176.45 MHz), QZSS (L5, 1176.45 MHz), IRNSS (L5, 1176.45 MHz)

Positioning Accuracy

RTK Mode:
Horizontal accuracy: 1.0 cm + 1 ppm* (Circular Error Probability / CEP 50%)
Vertical accuracy: 1.5 cm + 1 ppm* (Median)
Velocity accuracy: 0.05m/s
Dynamic heading accuracy: 0.3 deg

SBAS Mode:
Horizontal accuracy: 30 cm (Circular Error Probability / CEP 50%)

* Measurements are taken using a 1 km baseline. ppm is limited to a maximum baseline range of 20 kilometers. For every additional kilometer between the rover and the fixed station, the error increases by 1 mm. Testing is conducted in areas with a clear sky view.

* Based on a 1-hour static test.

Measurable Range

Maximum altitude: 80,000 m
Maximum horizontal speed: 1,800 km/h
Maximum vertical speed: 72,000 km/h

Positioning Ability*


Acquisition
Reacquisition: <2s
Hot start: <3s
Cold start: <28s
RTK convergence time: <5s

* Testing in ideal open environments.

Sensitivity
Tracking & Nav.: -165 dBm
Reacquisition: -163 dBm
Hot Start: -159 dBm
Cold Start: -148 dBm

Update Rate

RTK Mode: up to 10 Hz
SBAS Mode: up to 20 Hz

Output Sentences

Protocol: NMEA 0183
Version: V4.10
Geodesics: WGS84

Protocol: RTCM
Version: MSM4, MSM7

Bluetooth

Channel 1: P-70 Ultra NTRIP
Mode: SPP 2.1，BLE 5.1
Range: >10 m (33 feet)

Channel 2: P-70 Ultra
Mode: SPP 2.1，BLE 5.1
Range: >10 m (33 feet)

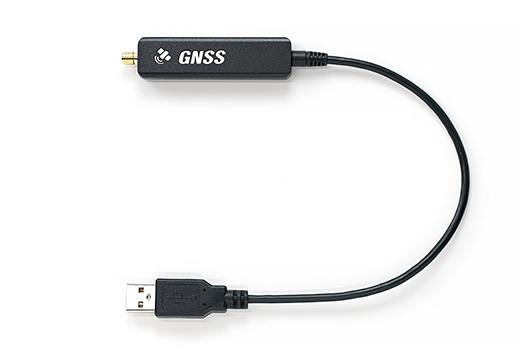

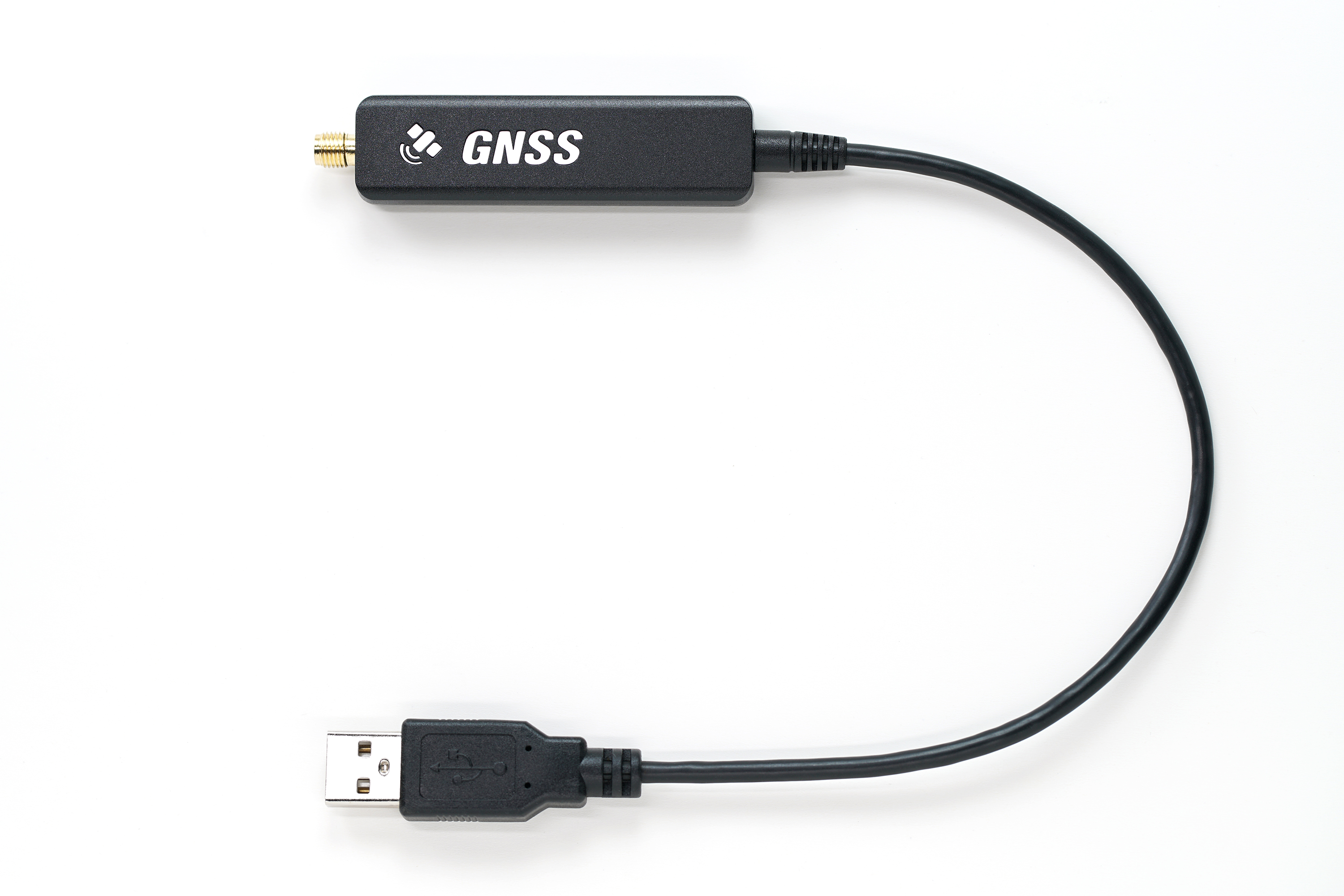

Interface

USB 2.0 Type-A (default)
USB bridges: Silicon Labs CP2105
Baud rate: 230,400 bps (default)

UART TTL (optional)
Level: 3.3V
Baud rate: 230,400 bps (default)

Power

USB interface
DC 5V / 80mA

UART TTL interface
DC 3.3 - 5V / 80mA

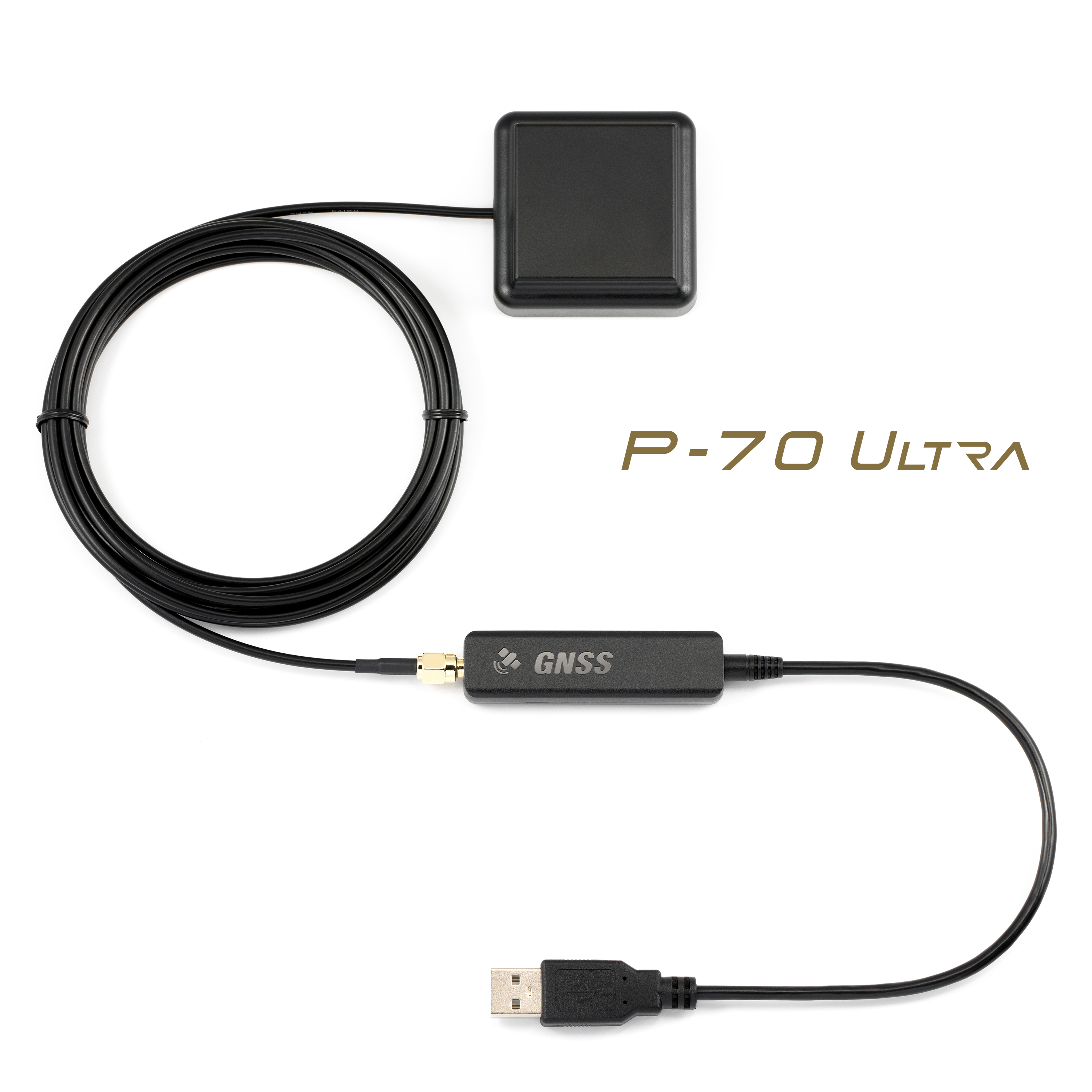

GNSS Antenna

Magnetic mount antenna (standard)
Type: Active antenna
Polarization: RHCP
Impedance: 50 Ω
VSWR: ≤2.0
Patch Gain: ≥2 dBi
LNA Gain: 29±2 dB (L1), 27±2 dB (L5)
Noise figure: ≤1.5 dB
Connectors: SMA (male)
Cable: RG174, 300 cm
Operating voltage: 3.3 V
Current: 16 mA
Mounting method: Magnetic, adhesive

Helical antenna (optional)
Type: Active antenna
Polarization: RHCP
Impedance: 50 Ω
VSWR: ≤2.0
Gain: ≥6 dBi (90°), ≥0 dBi (20°)
LNA Gain: 38±2 dB (L1, L2, L5), 27±2 dB (L5)
Noise figure: ≤1.0 dB
Connectors: SMA (male)
Operating voltage: 3.3 V
Current: 25 mA

System Requirements

Windows 7 or greater
Mac OS X v10.10 or greater
Linux 2.6.12 or greater
iOS 15 or greater
Android 10 or greater
iPad OS 15 or greater
