Cross-Platform Compatibility

Dual mode USB interface*

The USB port of P-10 Pro supports two operating modes: USB disk mode and GNSS receiver mode , which can be automatically switched according to the usage scene.

Cross-platform compatible with Windows, macOS, Android and Linux.

● USB disk mode. Read files from the MicroSD card in P-10 Pro.

● GNSS receiver mode. P-10 Pro can be used as an external HD GNSS receiver, and users can view the real-time location data.

Click to learn more>>

List of enterprises and Institutions using Columbus products (partial)

Beijing Jiaotong University（School of Traffic and Transportation）
East China Normal University
Tsinghua University
Dongfeng Nissan Passenger Vehicle Company
Track4Services Ltd. London
BMW Group
C-Dax Ltd. New Zealand
Columbia University
University of San Diego
University of Tennessee
Marine Mammal Research.com (MMR)
De La Salle University
The University of Western Ontario (Human Environments Analysis Laboratory)
Cornell University (Department of Animal Science)
Emory University (Department of Anthropology)
Michigan State University
University of Wisconsin-Madison
University of Ghana (Institute of Statistical)
U.S. Department of Agriculture (Range Resources and Systems Research)
University of Western Ontario, Canada (Department of Geography)
Oregon State University (Department of Animal and Ranch Science)
University of Maine
Lincoln University of Nebraska
University of South Florida
Archibald-University of Florida LTAR (Livestock Research and Education Center) University of Florida-IFAS
University of Zagreb, Croatia

×

* V2.0 firmware required.



High Reliability

Reliable and stable data storage

Data storage stability is critical, and we have improved the reliability of P-10 Pro.

We have optimized the hardware design to ensure that it faithfully records every track point during work. The reliability of data is better than 99.998%* under long-term and large-scale recording.

The Columbus data logger series has provided stable and efficient logging at a very low failure rate since its launch in 2009. So far, Columbus has supplied high-quality products to hundreds of enterprises and institutions around the world.

Click to learn about the good practices and partners of Columbus products>

List of enterprises and Institutions using Columbus products (partial)

Beijing Jiaotong University（School of Traffic and Transportation）
East China Normal University
Tsinghua University
Dongfeng Nissan Passenger Vehicle Company
Track4Services Ltd. London
BMW Group
C-Dax Ltd. New Zealand
Columbia University
University of San Diego
University of Tennessee
Marine Mammal Research.com (MMR)
De La Salle University
The University of Western Ontario (Human Environments Analysis Laboratory)
Cornell University (Department of Animal Science)
Emory University (Department of Anthropology)
Michigan State University
University of Wisconsin-Madison
University of Ghana (Institute of Statistical)
U.S. Department of Agriculture (Range Resources and Systems Research)
University of Western Ontario, Canada (Department of Geography)
Oregon State University (Department of Animal and Ranch Science)
University of Maine
Lincoln University of Nebraska
University of South Florida
Archibald-University of Florida LTAR (Livestock Research and Education Center) University of Florida-IFAS
University of Zagreb, Croatia

×

* Based on our test results. Track points are lost at a probability of less than 0.002%, or no more than one track point is lost in every 50,000 records.



Easy to read and process

Storage performance is vital to ensuring its stable logging and dependable storage over a long term.

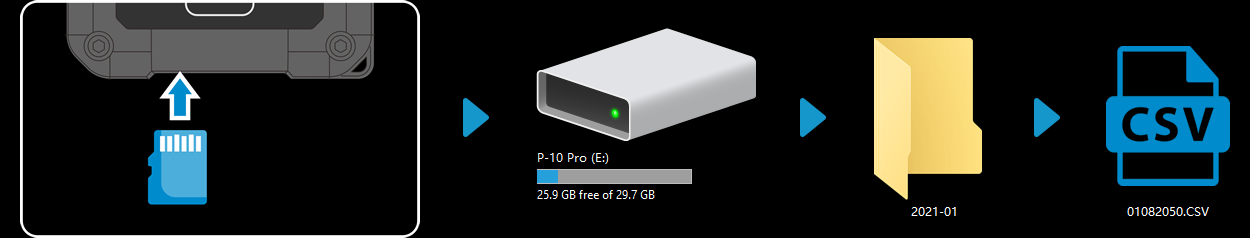

P-10 Pro uses the MicroSD card storage and supports massive-capacity SDXC cards.

The storage is readily accessible through any plug-and-play USB port, providing seamless compatibility with Windows, Mac OS, Linux and Android, that enables you to quickly read tracks across these platforms.

To facilitate statistics and management of massive volume of data collected in a long time period, P-10 Pro neatly arranges its logs by automatically naming track files after date and time, and folders by year and month.



CSV, GPX and NMEA

P-10 Pro offers three original track formats for selection: CSV, GPX and NMEA, which is convenient for secondary development and application.

You can also use the desktop software "Time Album Pro" to view the tracks and conversion.

Download the quick start to know the format details of P-10 Pro>



Logging Data

Space Saving

Versatility

Legibility


TimeAlbum™ Pro

"TimeAlbum™ Pro" is equipped with the most advanced track editing function and personalized settings with the ability to provide the latest and multiple maps, such as Google and Openstreetmap.

"TimeAlbum™ Pro" can assist in your background work, and can efficiently convert, manage and plan the tracks.
It is compatible with Windows, Linux and Mac OS.

Click to learn more and download "TimeAlbum™ Pro">



More Durable

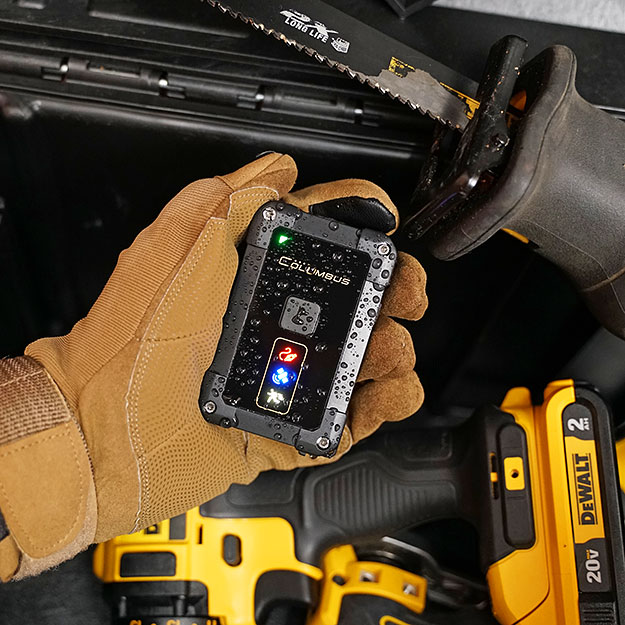

IP66 all weather

P-10 Pro can function well under all weather conditions at ease, including the icy, frosty, rainy and snowy days as well as deserts, Gobi, and the high-humidity environment!

P-10 Pro boasts an IP66 protection rating, and can be used in all weather conditions.

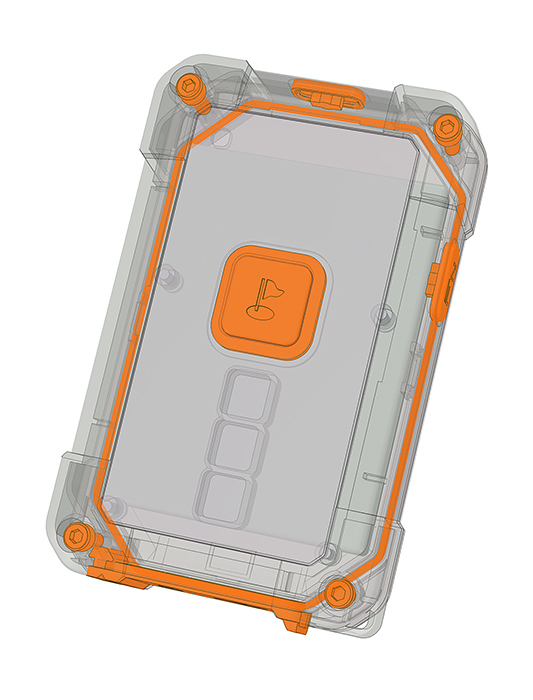

All connections between the buttons and the case, as well as the rubber cover at the bottom, are sealed to shield P-10 Pro from water and dust in any extreme weather.

P-10 Pro also works in an extended range of temperature from -10°C to 50°C, to ensure normal use at high latitudes and in tropical areas.

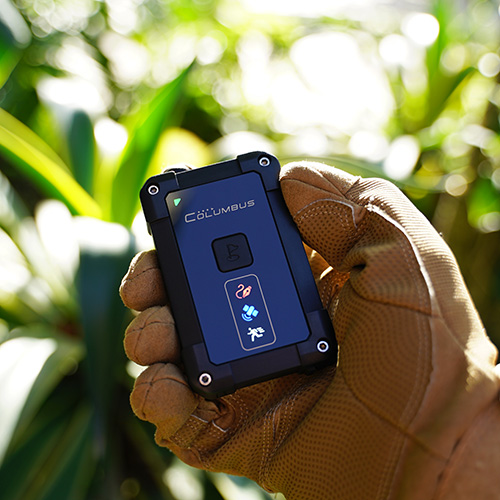

Ultra-bright multi-status lamps

We have improved the lamps design of P-10 Pro. Compared with P-1, P-10 Pro has its brightness increased by 100%, ensuring that the operating status can be clearly observed in sunlight outdoors.

HD GNSS data logger is sensitive to the environments, and the location of the device can greatly affect the positioning accuracy. In order to obtain the best accuracy, Columbus has exclusively designed the GNSS status lamp that can indicate various states for P-10 Pro.

GNSS is fixed: The lamp turns green, flashing.
GNSS is in the best positioning: The lamp turns blue, flashing.






Long battery life

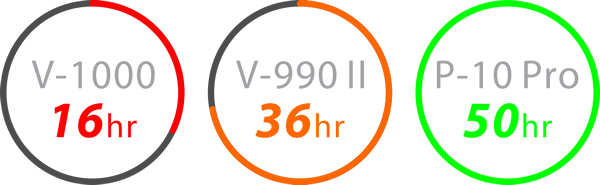

The battery life of P-10 Pro is more than 50 hours*, enough for a whole week's work (10 hours a day, 5 days a week) .

 * Continuous recording at 1Hz, with the ambient temperature at 20°C.



More intelligent

Motion Detection Mode

Columbus invented the Motion Detection Mode on the V-990 in 2011 and is widely welcomed by users.

The ordinary data logger still works after suspended movement or positioning failure, which consumes power and generates redundant track points. When P-10 Pro is in a static status or has lost the satellite signal for over 5 minutes, it is automatically on standby to save energy.

The Motion Detection Mode extends battery life and optimizes data. Short press the power button to turn on or off the mode.



On-board Auto on/off

P-10 Pro is automatically powered on/off with the vehicle, no need for manual operation.

*This function needs to be turned on in the configuration file.



Spy Tracking Mode

Columbus invented the Spy Tracking Mode for ultra-long battery life.

This mode achieves ultra-long battery life (up to 24 days) by interval work, and is suitable for tracking vehicles or people when charging is not convenient.In this mode, P-10 Pro gets positioned and logs 8 track points at a certain time interval.

In actual use, the spy tracking mode can not only extend the battery life but also optimize the track data.

Click to view the interval time / battery life table>

Click to learn the application case for livestock>

The corresponding battery life for different intervals is as follows:


Interval time 2 minutes 5 minutes 10 minutes 20 minutes
Battery life 12 days 17 days 20 days 24 days



×

For example, researchers intend to monitor the activities of cattle in livestock research projects, which needs to extend the battery life of the device as much as possible.

P-10 Pro can be configured as follows:

Step 1:

The interval time is set to 10 minutes in configuration file (SpyModeTimer=10). Complete the configuration of P-10.

Step 2:

Enter the spy tracking mode. P-10 Pro records the track points of livestock every 10 minutes. The battery life in this configuration lasts for about 20 days.





Customizable

Personalized configuration

P-10 Pro is a professional data logger that can be customized. You can configure the following parameters at any time according to the needs of the project.

Click to learn more>

Details about configuration of P-10 Pro

●  Time zone. UTC -12:00 to UTC +14:00.
●  Track format. P-10 Pro offers three original file formats: CSV (plain code format), GPX (common exchange format), and NMEA (NMEA 0183 format).
●  Log mode. By time, e.g.: 1s, 5s, 10s; By distance, e.g.: 5m, 10m(Metric) / 20ft, 50ft(Imperial).
●  FunctionButton. It can be configured for two purposes: POI or Pause. Pause: Press this button to pause logging, and press again to continue. POI: Press this button to mark the current position as the second type of POI.
●  Beeper. Turn On/Off the beeper.
●  Speed mask. Only record the track points with the speed beyond the specific value.
●  Spy mode timer. Set the wake-up interval (minute).
●  Auto power on. When connecting to the MicroUSB cable, P-10 Pro automatically turns On/Off with the power status.
●  One track per day. OFF: A new file is generated every time it is turned on. ON: Only one file is generated per day, and all the tracks are automatically merged into one track.
●  Speed alarm. P-10 Pro sounds the alarm when the speed exceeds the specific value. Short press the "POI Button" to temporarily stop.
●  Speed Unit: km/h (Metric), mi/h (Imperial).

×



Firmware customizable and self-updated

We are constantly improving P-10 Pro. You can download the latest version of the firmware on the official website and update it by yourself to ensure that the device is in the best condition. The update is user-friendly.

In addition, you can also tell us special requirements by email (columbusgps@hotmail.com), and we can customize the special version of the firmware accordingly.
