Take mobile devices as an example |
|
1. Install "Harry's GPS/OBD Buddy". |

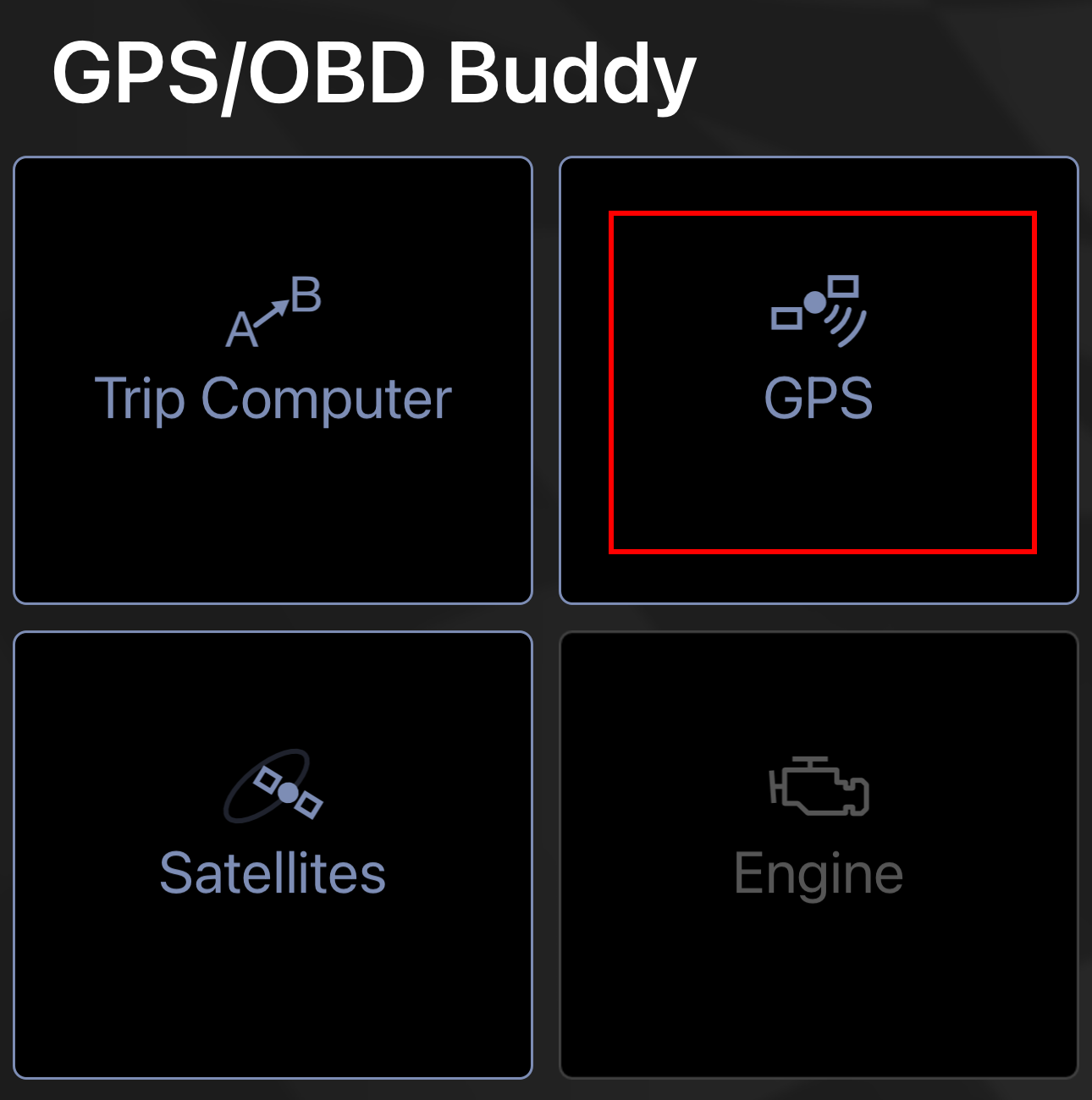

2. Open the app and tap "GPS". |
|
|
|
|

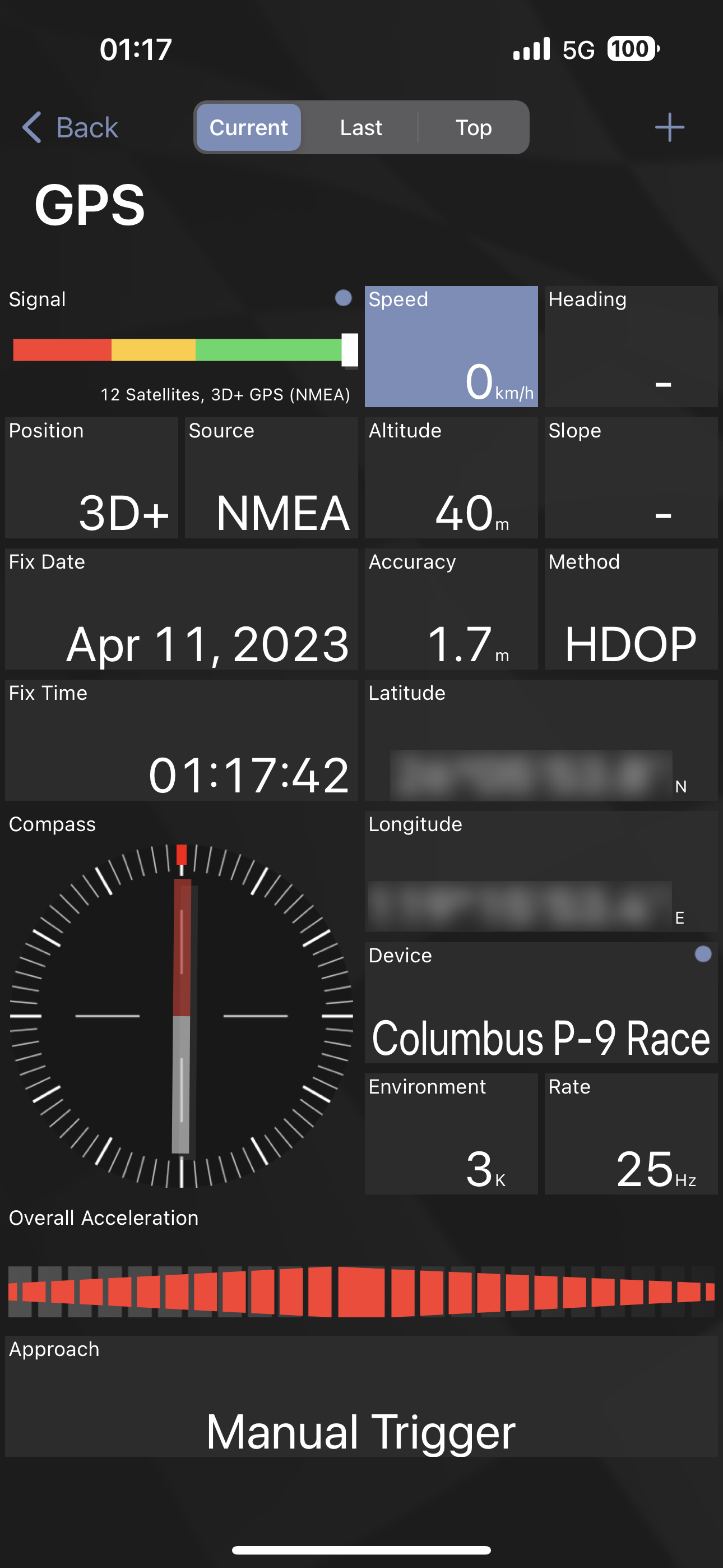

3. On the "GPS" page, you can see detailed positioning information. |
4. Tap "Signal" to view the satellite information in the current sky. |
|
|
|
 |
|
Take "Windows" as an example |
|
1.
Download and run "GnssToolKit"> |

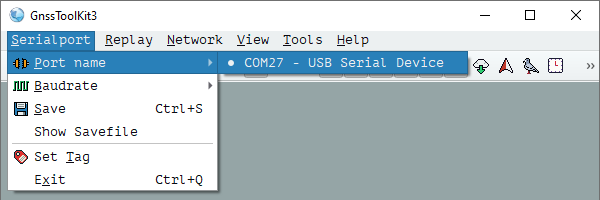

2. Click "SerialPort" - "Port name" - select the port where the P-9 Race is located. |
|
|
|
|

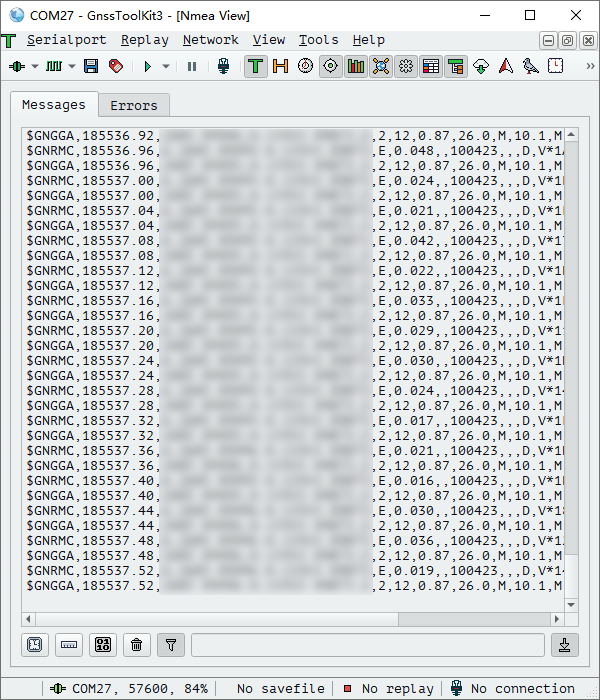

3. Select "View" - "NMEA" to view the received NMEA sentences. |

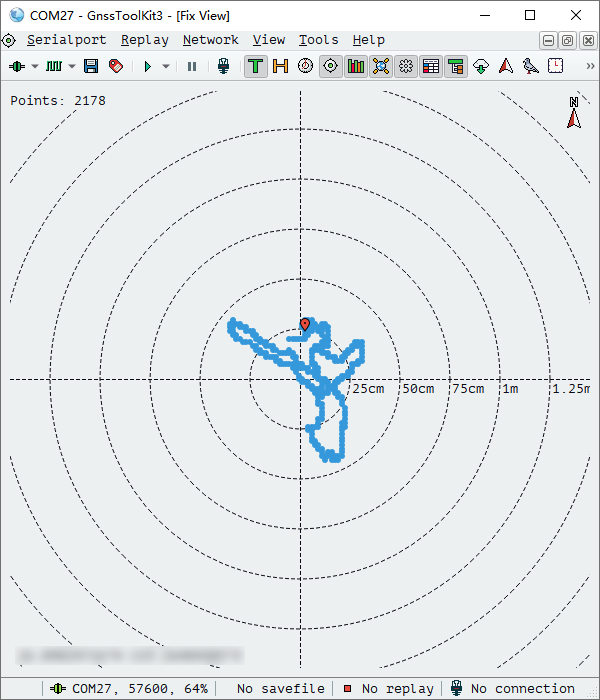

4. Select "View" - "Fix" to view the track. |
|
|
|
|

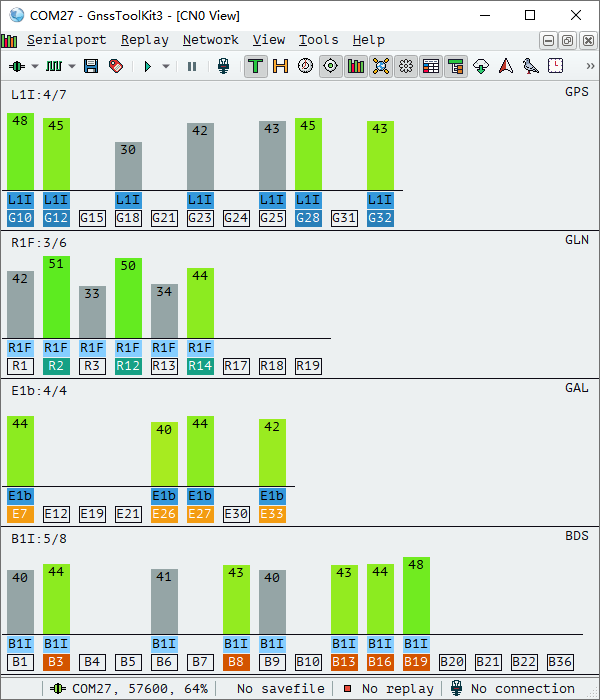

5. Select "View" - "CN0" to view the received signal strength of each satellite. |

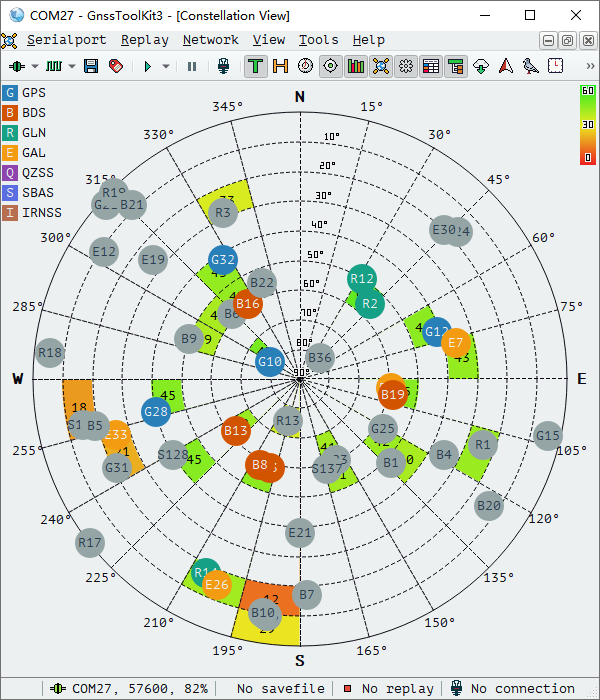

6. Select "View" - "Constellation" to view the current position of satellites in the sky. |
|
|
|
|

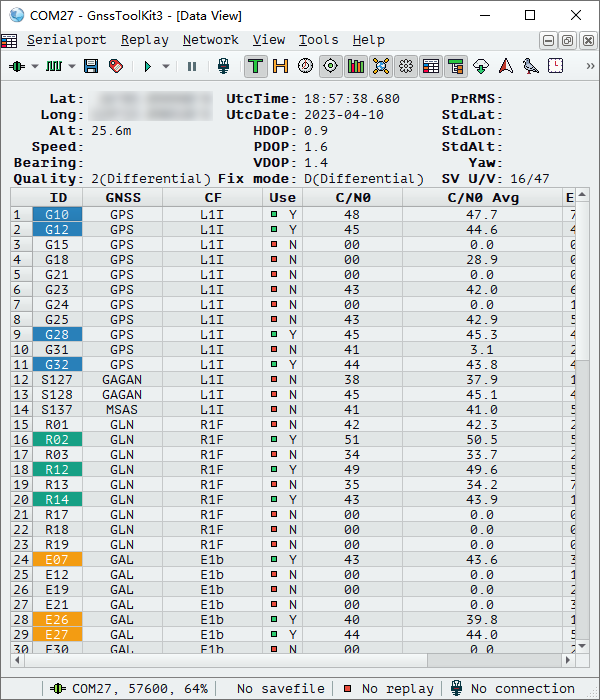

7. Select "View" - "Data" to view the detailed information of the positioning. |

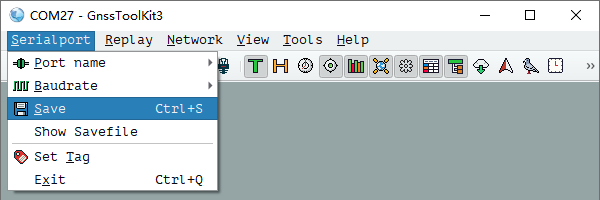

Tip: If you need to start logging, click "Serialport" - "Save". |
|
|
|
|
|
