>How to View GNSS Data<
Connect the external antenna to the P-70 Ultra and link the device to a Windows PC via USB. Place the antenna outdoors.
Download and run "GnssToolKit3".
Change the language to English, then restart the software.

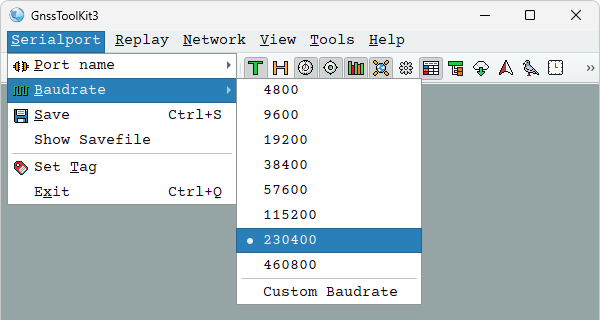

Click "Serialport" - "Baudrate" and select "230400".
Click "Serialport" - "Port name" and choose "COM5 - Enhanced COM Port" ("Standard COM Port") can also be selected).

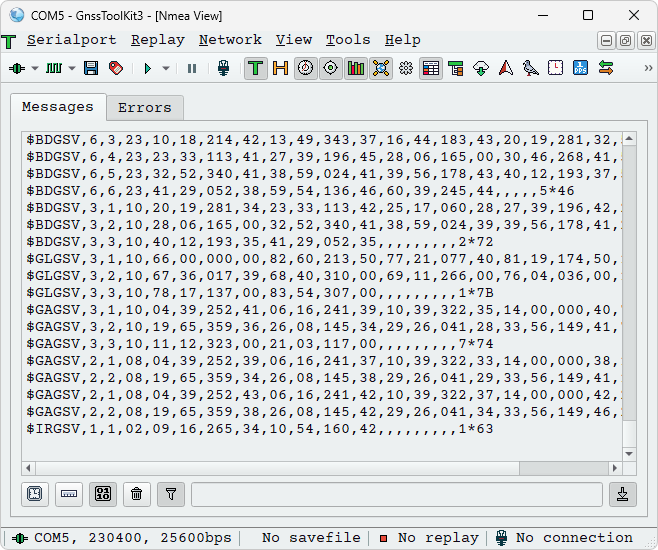

Click "View" - "NMEA" to check received NMEA sentences.

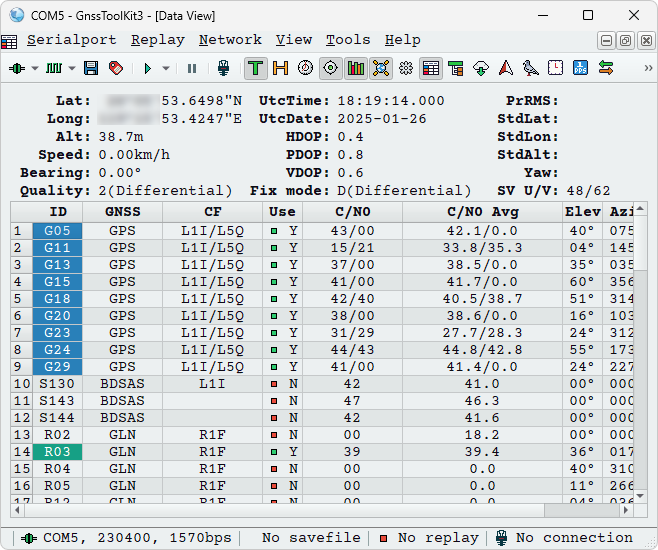

Click "View" - "Data" to view positioning information.

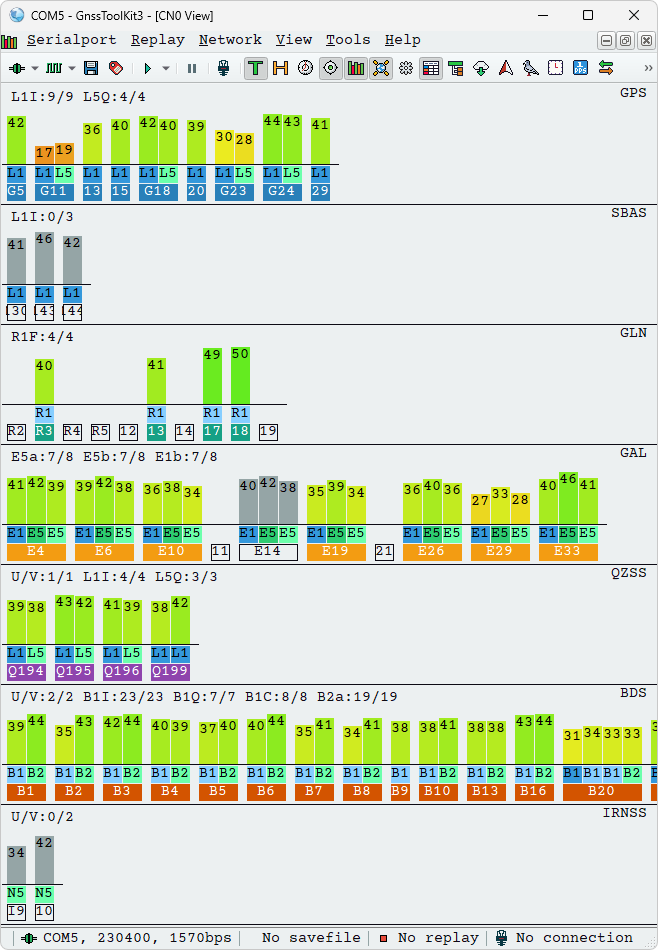

Click "View" - "CN0" to check satellite numbers and signal strength.

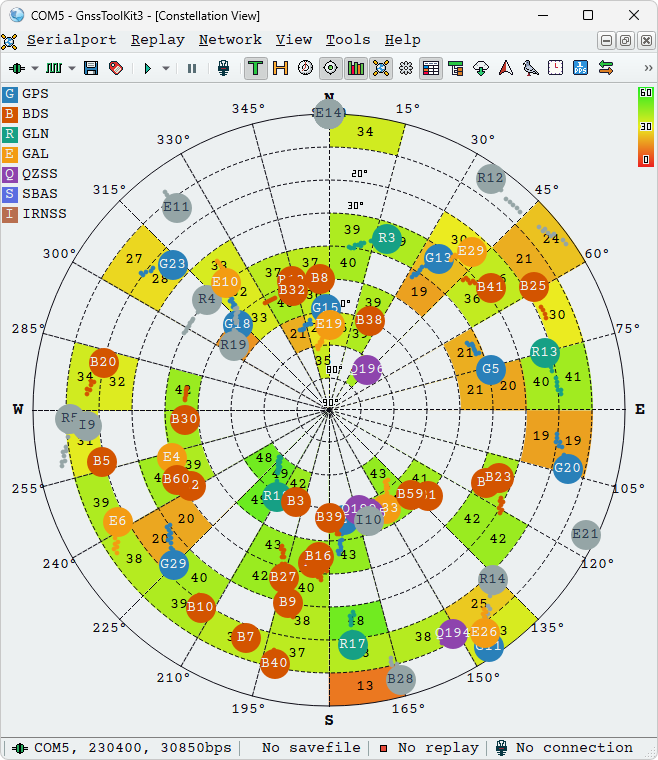

Click "View" - "Constellation" to see the satellite distribution in the sky.

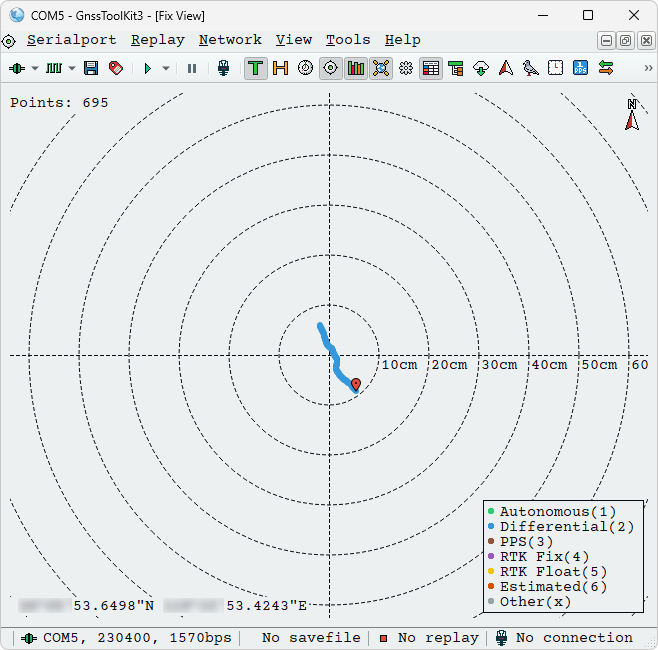

Click "View" - "Fix" to view the movement trajectory.

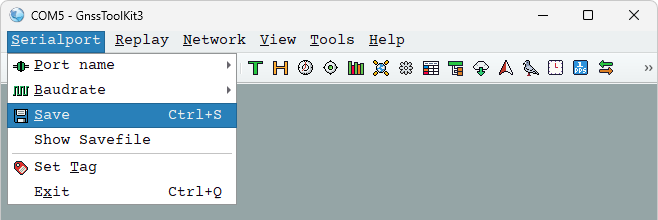

Click "Serialport" - "Save" to record real-time tracks.
