>How to Set Up a Base Station< |
|
 Register for an NTRIP account,
recommended via GeoAstra>
 After registration,
click ¡°My Mountpoints¡± and create a new mountpoint. |
|

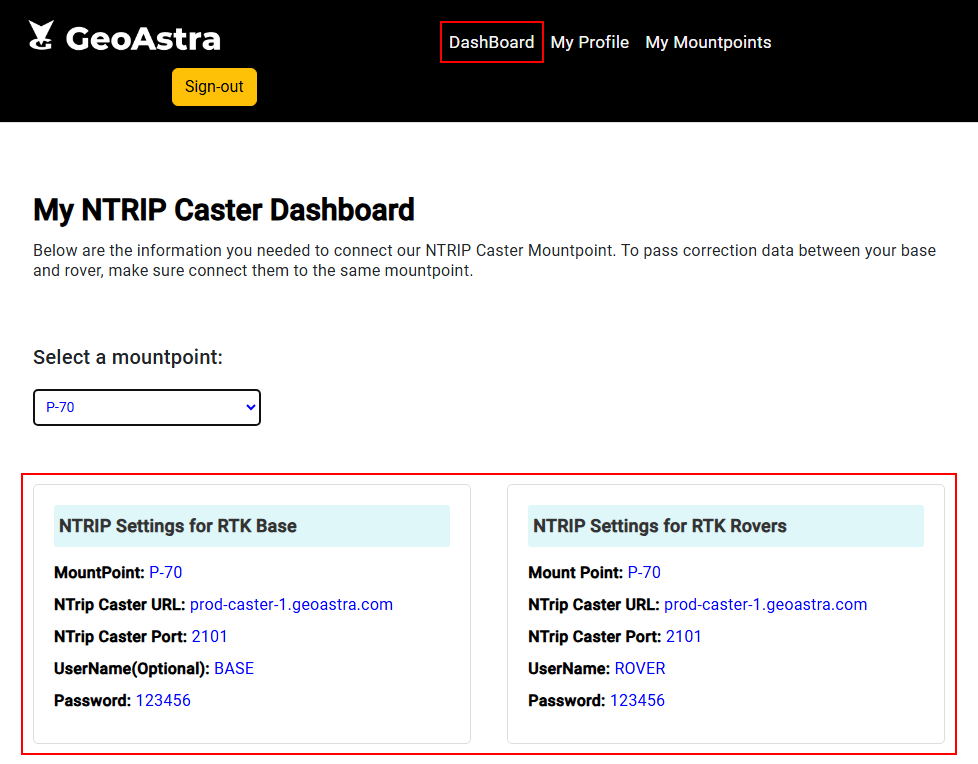

After registration,
click ¡°DashBoard¡± to confirm the mountpoint information*.
* This is just an example; parameters may vary for different accounts and can be
modified accordingly. |
|

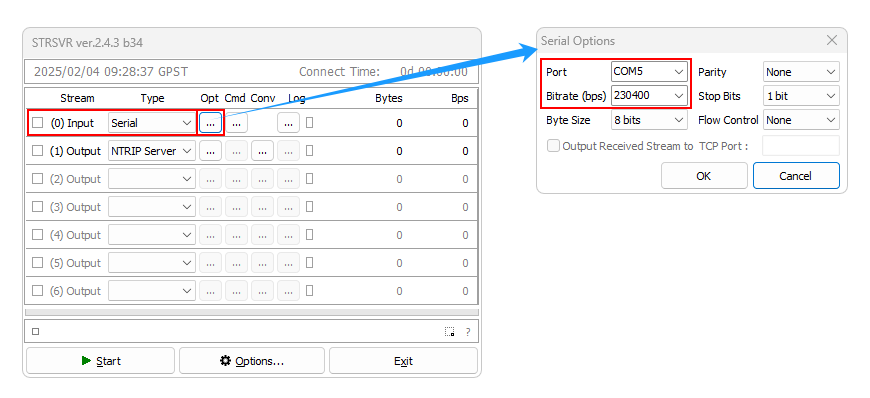

In the Input section,
select "Serial" as the type. Click "Opt", and choose the port where the base
station P-70 Ultra is connected. Set the baud rate to "230400". |
|

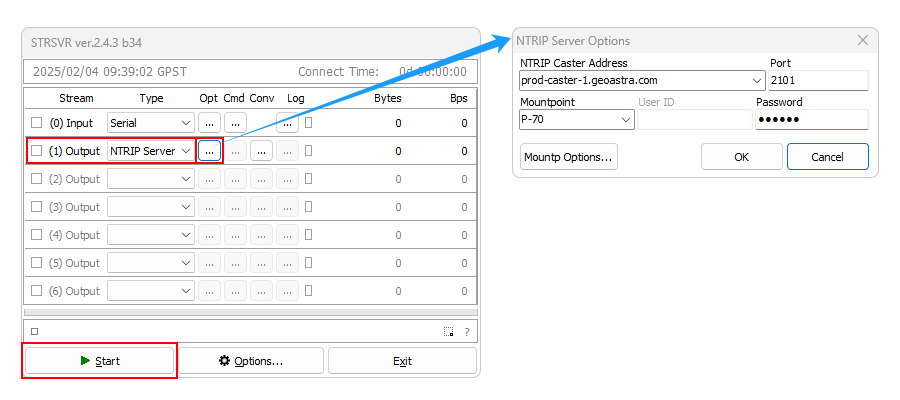

In the Output section,
select ¡°NTRIP Server¡±. Click ¡°Opt¡± and enter the mountpoint information you
obtained earlier. Click ¡°Start¡± to begin running the server. |
|

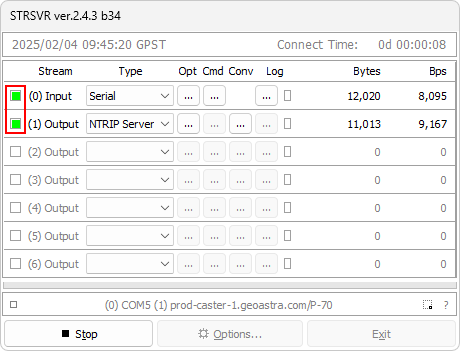

When the green square
flashes, the configuration is successful. |
|
Once a P-70 Ultra set to Rover
Mode connects to this base station, multiple rovers can achieve 1 cm positioning
accuracy.
For more details on obtaining RTK positioning, refer to
"How to Obtain RTK Positioning"> |
|
Configure the P-70 Ultra as a Base
Station.
