Wired Connection to P-70 Ultra

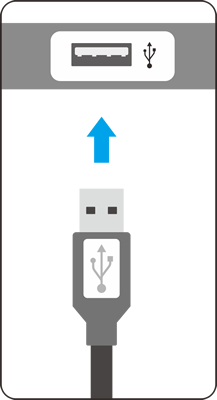

Connect the USB cable directly to your computer.









Example: Windows 10

1. Click here to download the Windows driver>

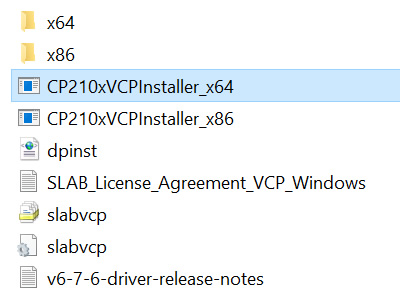

2. For 64-bit systems, run "CP210xVCPInstaller_x64"; for 32-bit systems, run "CP210xVCPInstaller_x86."

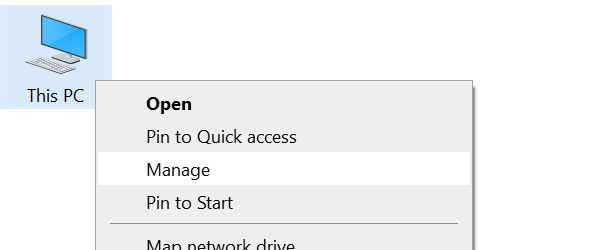

3. After installation, right-click "This PC" and select "Manage."

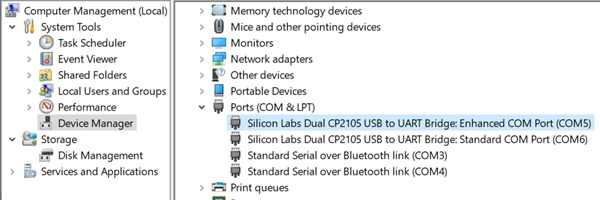

4. Open "Device Manager" and go to "Ports (COM & LPT)."
Look for "Silicon Labs Dual CP2105 USB to UART Bridge: Enhanced COM Port / Standard COM Port." Both COM ports are accessible via software, with a baud rate of 230,400 bps.

Example: macOS

1. Click here to download the macOS driver>

2. Install the driver.

3. If this screen appears, the installation is complete.

4. Use "SLAB_USBtoUART" or "SLAB_USBtoUART2" in your application. Both COM ports are accessible via software, with a baud rate of 230,400 bps.
