Bluetooth Connection

Connect with the power bank during portable use.
Connect with the car charger while driving.







Take "Android 11" as an example

1. Click to install OruxMaps GP GNSS>

2. Go to "Settings" - "Bluetooth".

3. Click on "P-7 Pro SPP".

4. Click "Pair".

5. Paired successfully.

6. Run QField and click "Menu" in the upper left corner.
Note: The P-7 Pro must be positioned in advance to allow a Bluetooth connection.

7. Click the "gear" in the upper left corner.

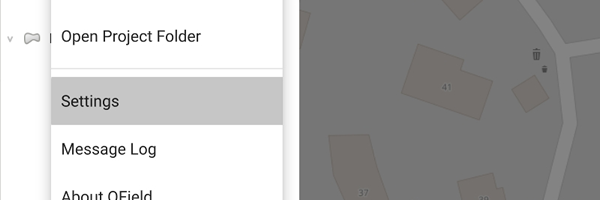

8. Click "Settings".

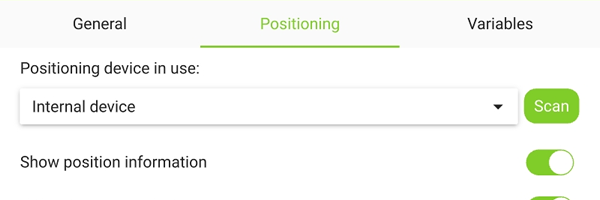

9. Click "Positioning" and click "Scan".

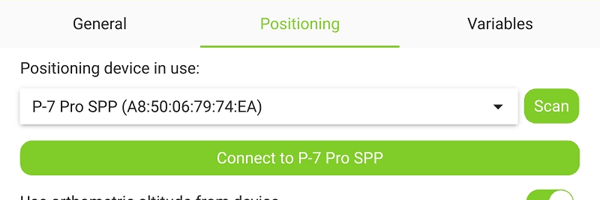

10. Select "P-7 Pro SPP" and click "Connect to P-7 Pro SPP".

11. Click Pair.

12. The system prompts "P-7 Pro SPP connected".
