Take "Android 11" as an example Bluetooth Connection |
|
|
Connect with the power bank during portable use. |
1. Click to install Locus Map 4 Outdoor Navigation> |
|
|
|
|
|

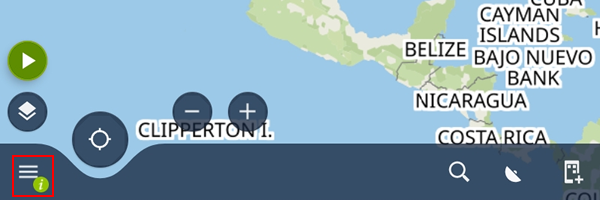

2. Click "Menu" in the lower left corner. |

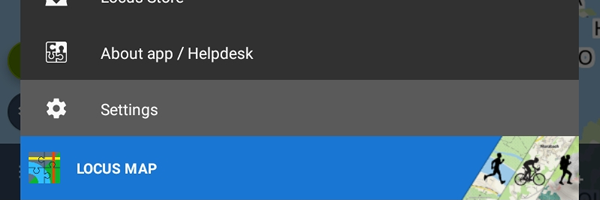

3. Click "Settings". |
|
|
|
|

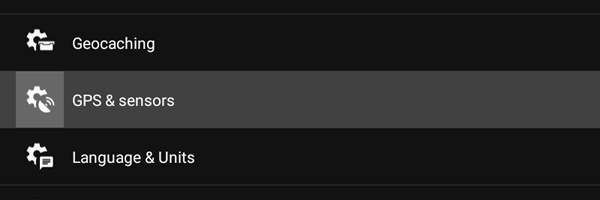

4. Click "GPS & sensors". |

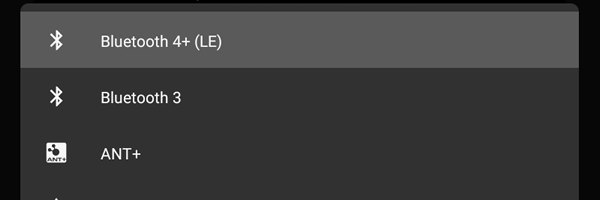

5. Click the "+" in the lower right corner and select "Bluetooth 4+ (LE)". |
|
|
|
|

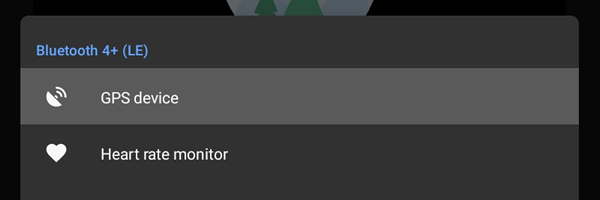

6. Click "GPS device". |

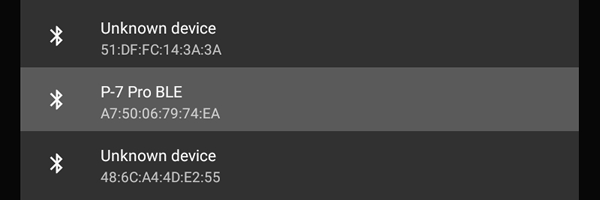

7. Select "P-7 Pro BLE". |
|
|
|
|

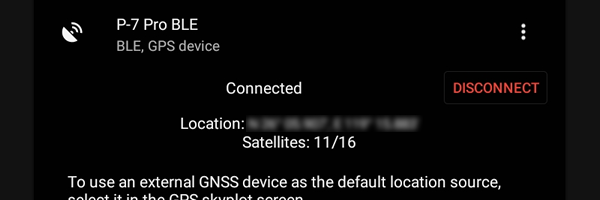

8. If you see the "Connected" prompt, the connection is successful. |
9. Click the "GPS icon" in the lower right corner. |
|
|
|
|

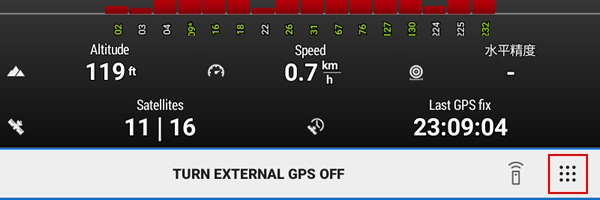

10. Click the icon in the lower right corner. |

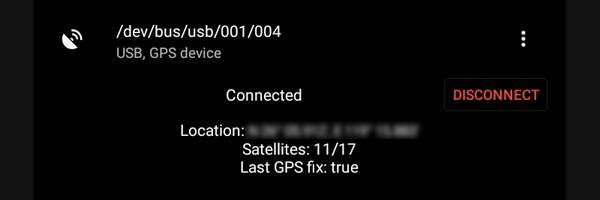

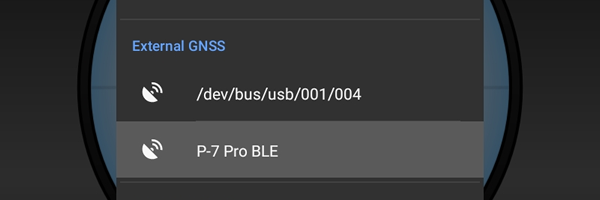

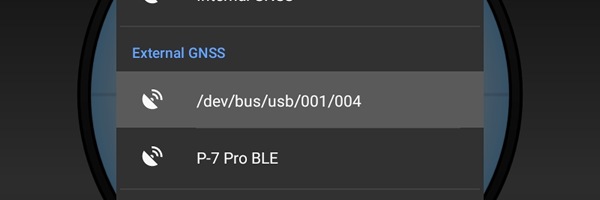

11. Select "/dev/bus/usb/...". If you see the positioning information, the connection is successful. |
|
|
|
 |
|
USB Connection |
|
|
Prepare an OTG cable and use it to connect the P-7 Pro to the phone. |
|
|
|
|
|
2. Click "Menu" in the lower left corner. |
3. Click "Settings". |
|
|
|
|
4. Click "GPS & sensors". |
5. Click the "+" in the lower right corner and select "Bluetooth 4+ (LE)". |
|
|
|
|
6. Click "GPS device". |

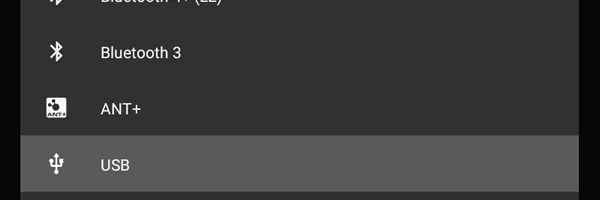

7. Select "USB". |
|
|
|
|

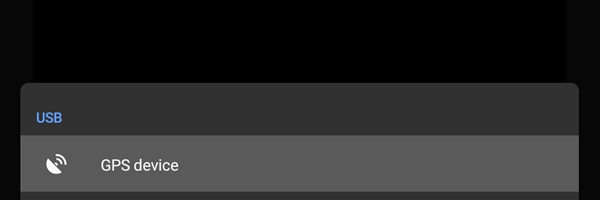

8. Select "GPS Device". |

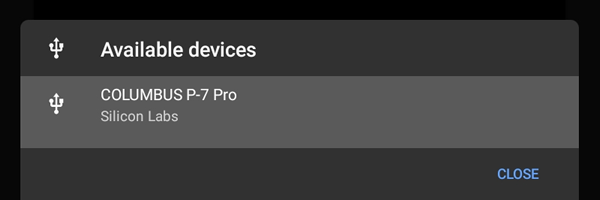

9. Select "COLUMBUS P-7 Pro". |
|
|
|
|

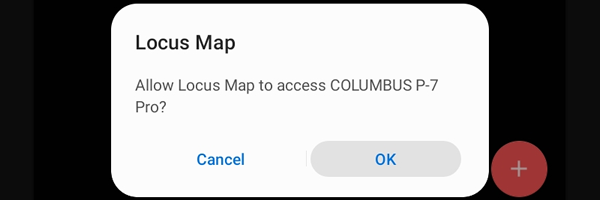

10. Click "OK". |

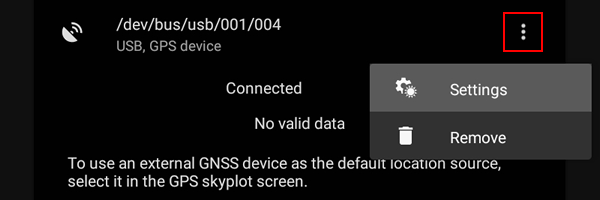

11. Click on "...". |
|
|
|
|

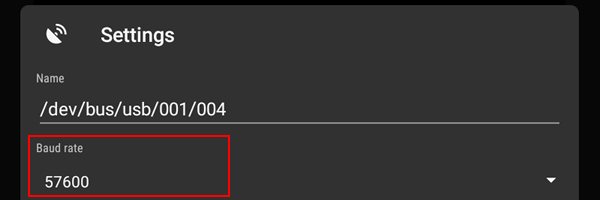

12. Modify the baud rate to "57600". |
13. Setup is complete. |
|
|
|
|
14. Click the "GPS icon" in the lower right corner. |
15. Click the icon in the lower right corner. |
|
|
|
|
16. Select "P-7 Pro BLE". If you see the positioning information, the connection is successful. |
|
|
|
|
|
|
