Take "Windows" as an example

1. Connect to the P-7 Pro on Windows>

2. Download and run "GnssToolKit">
Change the language to English, then restart the software.

3. Select "SerialPort" - "Baudrate" - "57600".

4. Click "Serialport" - "Port name" - select the port where "Enhanced COM Port" is located.


5. Click "View" – "Configuration".

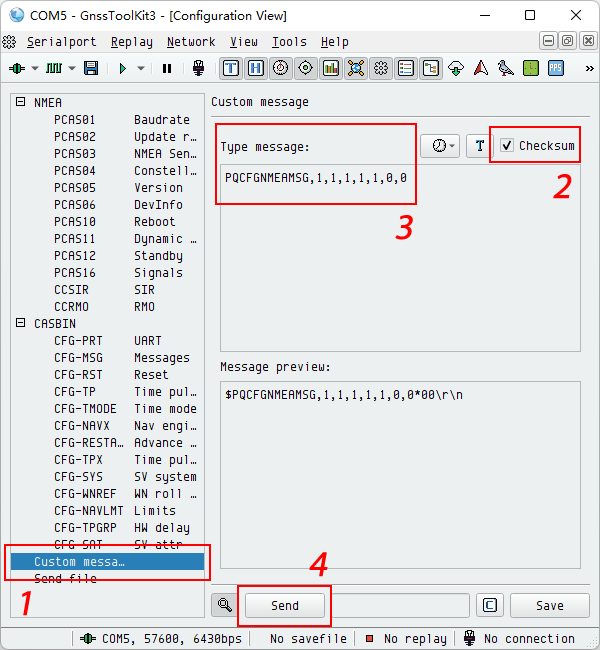

6. Click "Custom message", click "Checksum", type the message "PQCFGNMEAMSG,1,1,1,1,1,0,0", and finally click "Send".
To customize the output sentences, please refer to the instructions below.

Command Definition
  PQCFGNMEAMSG Each enables (1 = enable) or disables (0 = disable), Delimited by comma ",".
RW (RW=1, configuration enable)
GGA
RMC
GSV
GSA
GLL
VTG



  Example1:
 PQCFGNMEAMSG,1,1,1,1,1,0,0

Enable NMEA messages: GGA, RMC, GSV, GSA.		 Example2:
 PQCFGNMEAMSG,1,1,0,0,0,0,0

Enable NMEA messages: GGA, RMC. Minimum specific GNSS data.

Default setting:
 PQCFGNMEAMSG,1,1,1,1,1,0,0

7. Type the message "PQSAVEPAR" and click "Send".
