In order to obtain higher
accuracy, please read the following important
information before download:
However, the placement
position can significantly affect the accuracy. |
|
Driving
Place it under the windshield of
the vehicle and face up, which is the ideal location for
on-board logging.
Recommendation: ★★★ |
|
 |
|
Walking
Hand held, face up. The outline of
a certain area can be drawn on foot.
But don't put it in your
pocket, because your body will block the GNSS signal,
which will significantly reduce the accuracy.
Recommendation: ★★★
|
|
 |
|
Carrying
It can be placed in a bag with the
receiving side facing out.
However, doing so will
also reduce accuracy.
Recommendation: ★
|
|
 |
|
Different placement of the same usage scene will result
in a huge difference in accuracy. For example, holding
it up in hand and putting it in pocket when walking,
the accuracy will vary greatly.
|
|

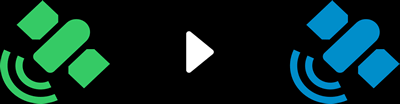

Observe the GNSS status lamp
In an ideal open-air environment, when a sufficiently
high accuracy is obtained, the GNSS status lamp changes
from flashing green to blue, indicating that it is
currently in a higher-precision positioning state.
You can adjust the placement
position by observing the color of the GNSS status lamp.
|
|
 |
|
About the positioning
accuracy
The positioning ability of P-1
Mark II: Horizontal position accuracy is 1.5m/CEP(50%),
4.0m/CEP(95%)
CEP refers to Circular Error Probable.
1.5m/CEP(50%)* means that the probability of the track
points falling within a 1.5m radius is greater than 50%;
4.0m/CEP(95%)* means that the probability of the track
points falling within a 4.0m radius is greater than 95%
.
* Data from testing in ideal
open-air environments, the placement position can
significantly affect the accuracy.
|
 |
|
|
