The EX-1's default NMEA sentence has a
position accuracy of 5 decimal places,
with a minimum resolution of
approximately 1~2 cm. You can extend the
position accuracy to 7 decimal places,
with a minimum resolution of
approximately 0.2 mm, by following these
steps.
Default precision:
$GNRMC,155544.00,A,3705.92075,N,12015.88656,E...
$GNGGA,155544.00,3705.92075,N,12015.88656,E...
After setting to high-precision mode:
$GNRMC,160415.00,A,3705.9207505,N,12015.8865595,E...
$GNGGA,160415.00,3705.9207505,N,12015.8865595,E...
When RTK positioning is active and the
antenna remains stationary, the track points may slowly
drift within a 1 cm range, this is normal. |
Open and connect to "u-center."

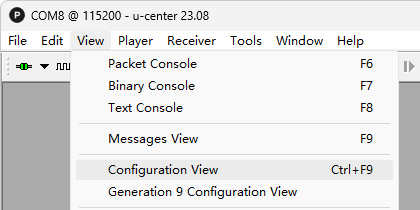

Click "View" - "Configuration View."

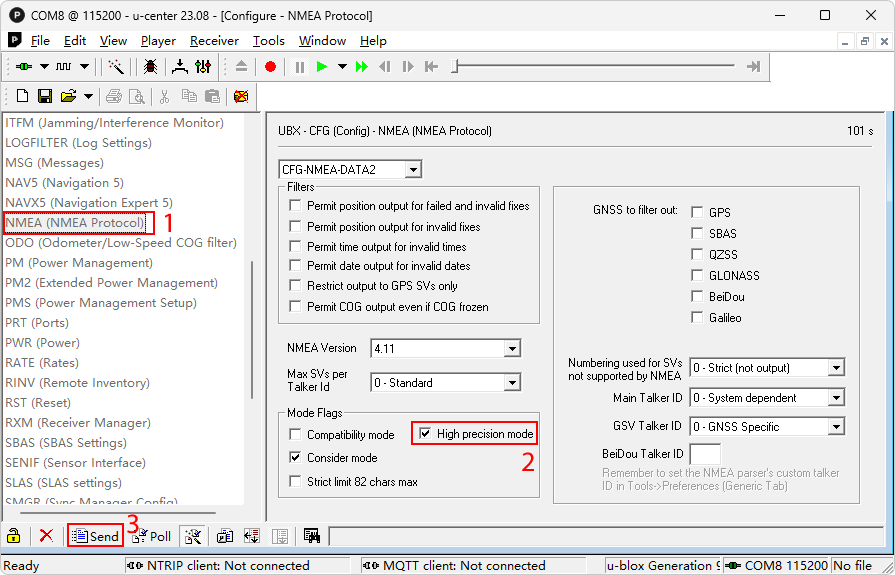

Click "NMEA
(NMEA Protocol)," check "High precision mode," and finally
click "Send" to apply the settings.

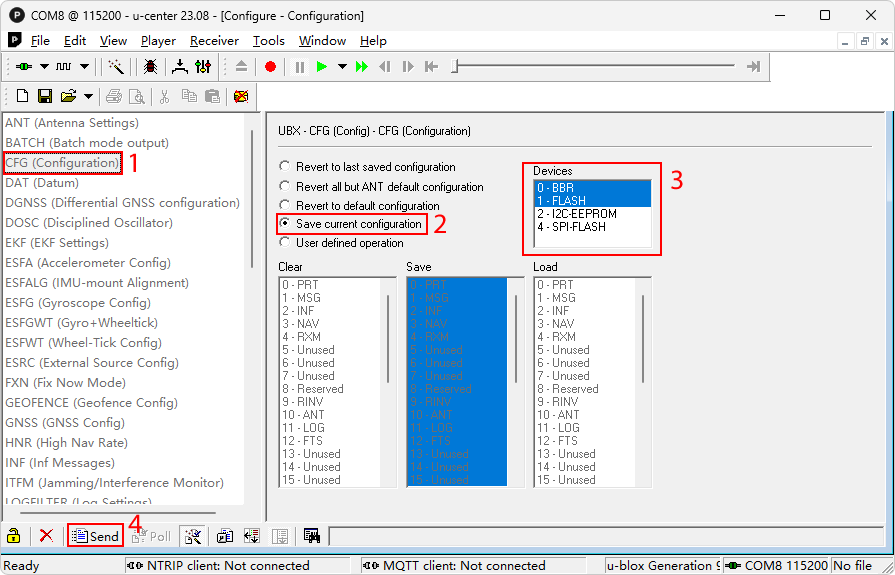

If you want the settings to be retained after powering off,
click "CFG (Configuration)," check the boxes as shown below,
and finally click "Send" to save the settings.
