The USB port of P-10 Pro supports two operating modes:

The USB port of P-10 Pro supports two operating modes:
1. USB disk mode. Read files from the MicroSD card in P-10 Pro.
2. GNSS receiver mode. P-10 Pro can be used as an external HD GNSS receiver, and users can view the real-time location data.

USB Disk Mode

Take Windows 10 as an example

1. Power off P-10 Pro first and then connect it to a computer via a USB cable.
2. Click "This PC" to read the MicroSD card of P-10 Pro.

NOTE: Do not power on P-10 Pro while the MicroSD card is being read.

Take Android 11 as an example

1. Prepare an OTG cable in advance. First power on the P-10 Pro, then connect it to the Android device via an OTG cable.

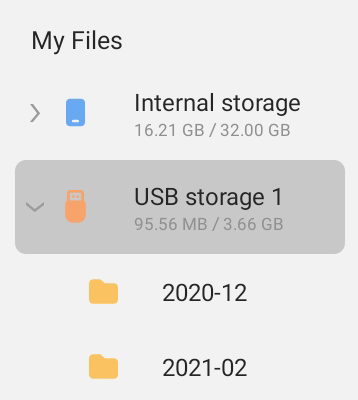

2. Click "My Files" - "USB Storage" to read the files in the MicroSD card.

3. It is recommended to use APPs such as "Locus Map" and "OruxMaps GP" to view the track files.

GNSS Receiver Mode

Take Windows 10 as an example

1. Power on P-10 Pro first, then connect it to the computer via a USB cable.

2. Right-click on "This PC" on the desktop, select "Manage", and enter "Device Manager". Click to view Ports (COM and LPT), you can see the port number where the P-10 Pro is located.

3. Run the desktop software "GNSSToolKit", select the serial port number, and the baud rate is "115,200bps".

4. The following software is available for testing.

Take Android 11 as an example

1. Prepare an OTG cable in advance. Power on P-10 Pro first, then connect it to the Android device via an OTG cable.

2. Download the "GPS Connector" APP.



3. Go to "Settings" --> "About tablet" -->"Software information”.

4. Tap on "Build Number" seven times, until see "Developer mode has been turned on".

5. Go to “Developer Options" --> "Select Mock Location app".

6. Select "GPS Connector" app.

7. Open the "GPS Connector" app. Click the "gear" icon.

8. Click the "GNSS Device" --> select ”USB Device”.

9. Select "Generic" for "USB Vendor" and "115200" for "Baud rate".

10. Enable "Set GPS Mock Location" option.

11. When the latitude and longitude are displayed, it means the setting is correct.

12. Click to open the map APP to start using the location service of P-10 Pro.
It is recommended to use "Google Maps", "Locus Map", "OruxMaps GP" APP.
