Instructions for GNSS receiver mode of firmware V2.0

Columbus added the feature of GNSS receiver mode in V2.0 firmware. Connect the P-10 Pro to a computer via a USB cable, and users can view real-time location data and navigate.


How to use

Below will take Windows 10 as an example.

1. Power on the P-10 Pro first, then connect it to the computer with a USB cable.

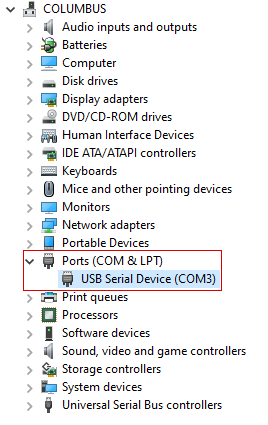

2. Right-click on "This PC" on the desktop, select "Manage", and enter "Device Manager". Click to view Ports (COM and LPT), you can see the port number where the P-10 Pro is located.

3. Open the desktop software, select the serial port number, and set the baud rate to "115,200bps".

Testing software

Caution:
1. To use the GNSS receiver mode, be sure to power on the P-10 Pro before connecting it to the computer.
2. To read the memory card in the P-10 Pro, be sure to turn off the P-10 Pro before connecting it to the computer.
